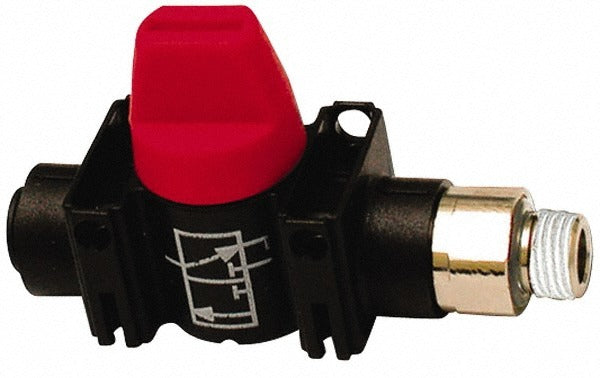

Legris 7915 04 11 Miniature Ball Valve 5/32 in Mnpt

Product Description

The LEGRIS 7915 04 11 is a miniature manual ball valve designed for 5/32-inch pipe applications requiring a compact, manually operated shutoff. Built with a composite body and nickel-plated brass trim, this valve combines corrosion resistance with a lightweight form factor weighing 0.11 pounds. It features a standard port configuration and a short handle for operation in confined spaces. The end connection is MNPT on one side and push-to-connect on the other, allowing it to integrate directly into pneumatic or fluid tubing runs without additional fittings. Buna-N seals and seating material make it suitable for air and compatible fluid media. Licensed trades and industrial maintenance technicians typically specify this valve for instrumentation panels, pneumatic control circuits, and small-bore fluid systems.

This valve is suited for residential and light commercial pneumatic and fluid control applications where a miniature footprint is required. The 1/8-inch thread size on the MNPT end connects to standard small-bore threaded ports, while the push-to-connect end accepts tubing directly. The short handle design is particularly useful in panel-mount or tight-clearance installations where a standard-length handle would interfere with adjacent components. The black body with red handle provides quick visual identification of valve position during service.

Key Features

• Composite body construction for lightweight corrosion-resistant performance
• Nickel-plated brass trim for durable internal component finish
• Buna-N seals and seat material for compatibility with air and general-purpose fluid media
• MNPT x push-to-connect end connection for tool-free tubing installation on one end
• Short handle design suited for confined panel or cabinet installations
• Standard port ball valve for straightforward full-open and full-close service

Compatibility

Designed as an OEM-style replacement or direct-install miniature ball valve for small-bore pneumatic and fluid control systems using 5/32-inch pipe and 1/8-inch MNPT threaded ports.

Installation Notes

Installation of this valve should be performed by a qualified technician familiar with pneumatic or low-pressure fluid piping systems. Depressurize and isolate the line completely before removing any existing fitting or valve. Apply thread sealant to the MNPT connection in accordance with the system fluid compatibility requirements and applicable plumbing or pneumatic codes. Verify push-to-connect tubing is fully seated and the system is leak-checked at operating pressure before returning to service.
