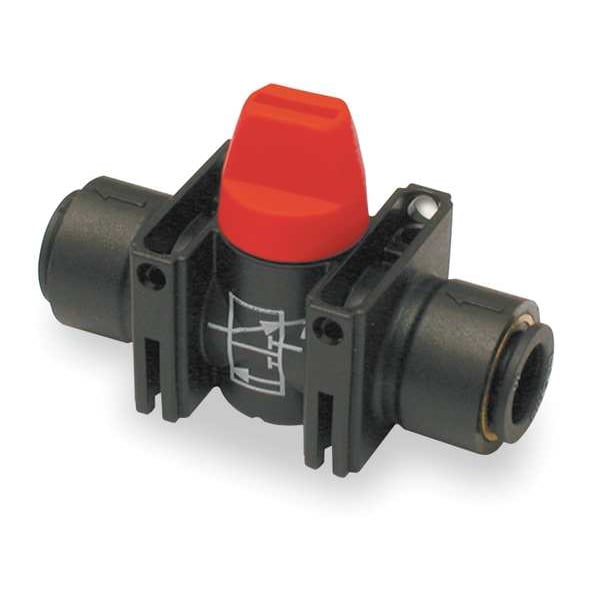

Legris 79136000 3/2 Venting Push-to-Connect Mini Ball Valve

Product Description

Legris 79136000 is a mini ball valve designed for in-line opening and closing of pneumatic circuits. This compact and lightweight valve suits various installations, providing full passage and excellent flow performance. The valve features multiple mounting options for diverse applications. The handle's color differentiates it, allowing easy identification with the pneumatic symbol.

• In-line opening and closing for pneumatic circuits
• Compact and lightweight design
• Various mounting options

Product Highlights

Ideal for compressed air systems with a reliable and efficient flow control.

Product Information

Standard Information

• Brand: Legris
• MPN: 79136000

Technical Specifications

• Connection Type: Tube to Tube
• Temperature Range [Max]: 175 °F
• Pressure [Max]: 145 psi
• Body Material: Composite
• Suitable Fluid: Compressed Air
• Vacuum: 28 in Hg
• Tube OD: 0.375 in
• Temperature Range [Min]: -4 °F
• Valve Type: Valve
• Type: Mini Ball Valve
• Weight: 0.253 LB
• EAN or UPC: 820099337838
