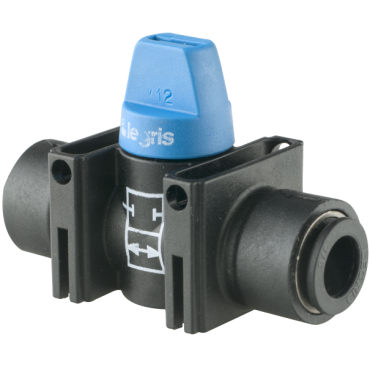

Legris 79101200 2/2 Non-Venting Push-to-Connect Mini Ball Valve

Product Description

The Legris 79101200 is a 2/2 non-venting push-to-connect mini ball valve. This valve is designed for tube-to-tube connections in compressed air systems. Its compact design makes it suitable for tight spaces. The valve includes a slotted head for easy adjustment.

• Compact and lightweight design
• Slotted head for adjustment
• 12 mm tube-to-tube connection

Product Highlights

This mini ball valve is ideal for applications that require reliable control of compressed air flow.

Product Information

Standard Information

• Brand: Legris
• MPN: 79101200

Technical Specifications

• Type: Mini Ball Valve
• Body Material: Composite
• Temperature Range [Min]: -4 °F
• Temperature Range [Max]: 175 °F
• Pressure [Max]: 145 psi
• Vacuum Hg: 28 in
• Tube OD: 12 mm
• Suitable Fluid: Compressed Air
• Connection Type: Tube to Tube
• Weight: 0.317 LB
• EAN or UPC: 820099337449
