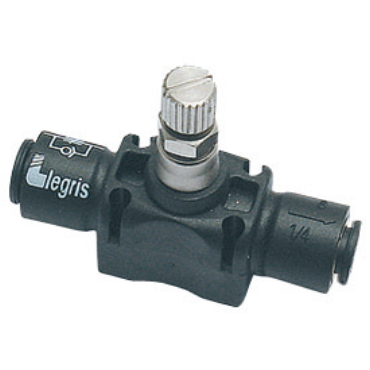

Legris 77705600 In-Line Flow Control Valve

Product Description

The Legris 77705600 is an In-Line Flow Control Valve designed to manage air flow effectively. This valve allows for one-way air flow, making it ideal for various fluid control applications. The integrated adjustment screw enables precise control of the exhaust air flow. An indicator arrow on the valve body clearly indicates the direction of air flow, and the adjustment is secured with a locking nut for reliability. The product includes two joining clips for convenient installation.

• Composite construction ensures durability.
• Designed for a tube outside diameter of one quarter inch.
• Maximum pressure rating of one hundred forty-five psi.

Product Highlights

This flow control valve is suitable for applications that require controlled and regulated air flow. With its one-way design, it ensures effective management of exhaust air while allowing unrestricted intake.

Product Information

Standard Information

• Brand: Legris
• MPN: 77705600

Technical Specifications

• Pressure [Max]: 145 psi
• Direction of Flow: One-Way
• Overall Length: 2 inches
• Inch/Metric: Inch
• Configuration: In-Line
• Tube O.D.: 1/4 inches
• Pressure [Min]: 15 psi
• Material: Composite
• Temperature Range [Max]: 160 °F
• Temperature Range [Min]: 30 °F
• Connection Type: Push-To-Connect In-Line
• Adjustment Type: External Knob/Screw
• Weight: 0.066 LB
• EAN or UPC: 820099518800
