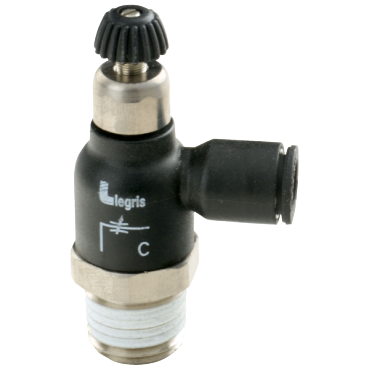

Legris 70670813 Bi-Directional Flow Control Regulator - Compact

Product Description

The Legris 70670813 is a bi-directional flow control regulator designed for efficient fluid management in various applications. This compact regulator features a male thread connection for easy installation. With a knob adjustment feature, users can have precise control over the flow rate. The regulator is compatible with 1/4 BSPT threads and can accommodate tubes with an outer diameter of eight millimeters.

• Compact design for limited spaces
• Suitable for both directions of flow
• Stable performance within specified pressure limits

Product Highlights

This product is ideal for HVAC systems, plumbing applications, and industrial fluid control systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 70670813

Technical Specifications

• Direction of Flow: Bi-Directional
• Male Thread Type: BSPT
• Temperature Range [Min]: 30 °F
• Female Port Type: N/A
• Pressure [Max]: 145 psi
• Male Thread Size: 1/4
• Configuration: 90°
• Connection Type: Male Thread to Tube
• Tube OD: 8 mm
• Material: Composite
• Adjustment Type: Knob
• Temperature Range [Max]: 160 °F
• Female Port Size: N/A
• Weight: 0.081 LB
• EAN or UPC: 820099322384
