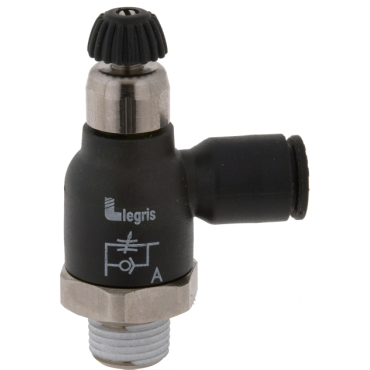

Legris 70651221 Compact Meter-Out Flow Control

Product Description

The Legris 70651221 is a compact meter-out flow control designed for efficient air flow regulation in pneumatic systems. It mounts directly to cylinders, allowing for straightforward installation. The intake air freely passes through the control while the exhaust is managed by an adjustable screw. This design enables precise speed control for various applications.

• One-piece composite construction
• Knob adjustment for easy flow regulation
• Compact 90-degree configuration for space-saving installation

Product Highlights

This product provides reliable performance and is ideal for controlling pneumatic cylinder speeds effectively.

Product Information

Standard Information

• Brand: Legris
• MPN: 70651221

Technical Specifications

• Tube OD: 12 mm
• Connection Type: Male Thread to Tube
• Configuration: 90 degrees
• Male Thread Type: BSPT
• Material: Composite
• Pressure [Max]: 145 psi
• Male Thread Size: 1/2
• Direction of Flow: Meter-Out
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Pressure [Min]: 15 psi
• Weight: 0.143 LB
• EAN or UPC: 820099321721
