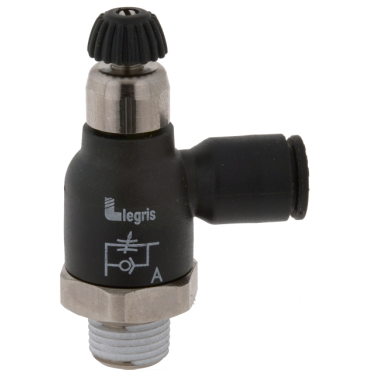

Legris 70650411 Compact Meter-Out Flow Control

Product Description

Legris 70650411 is a compact flow control valve designed for direct mounting on cylinders. This valve allows intake air to flow freely while metering the exhaust air through an adjustment screw. Controlling the speed of the cylinder is achieved by regulating the exhaust air flow.

• Compact design
• Knob adjustment for easy control
• Push-to-connect fitting

Product Highlights

This product enables efficient flow control and secure installation in various applications.

Product Information

Standard Information

• Brand: Legris
• Part Number: 70650411

Technical Specifications

• Male Thread Size: 1/8
• Configuration: 90 degrees
• Material: Composite
• Temperature Range [Max]: 160 °F
• Temperature Range [Min]: 30 °F
• Adjustment Type: Knob
• Tube OD: 5/32 inches, 4 mm
• Overall Length: 1.17 inches
• Overall Height [Max]: 1.7 inches
• Overall Height [Min]: 1.48 inches
• Pressure [Min]: 15 psi
• Pressure [Max]: 145 psi
• Direction of Flow: Meter-Out
• Weight: 0.049 lbs
