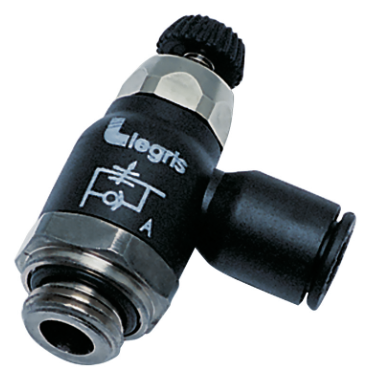

Legris 70600817 Compact Meter-Out Flow Control

Product Description

The Legris 70600817 Compact Meter-Out Flow Control is designed for efficient flow regulation. It mounts directly to cylinders for precise control of exhaust air. The flow is adjusted via a user-friendly knob, allowing for easy speed management of the cylinder. The integration of a push-to-connect fitting ensures a reliable connection.

• Compact right-angle installation
• One-piece construction
• Rotates 360 degrees for assembly convenience

Product Highlights

This flow control valve is suitable for use in various pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 70600817

Technical Specifications

• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Pressure [Min]: 15 psi
• Pressure [Max]: 145 psi
• Tube O.D.: 8 mm, 5/16 in
• Male Thread Size: 3/8
• Material: Composite
• Configuration: 90 degrees
• Direction of Flow: Meter-Out
• Adjustment Type: External Knob/Screw
• Connection Type: Male Thread to Tube
