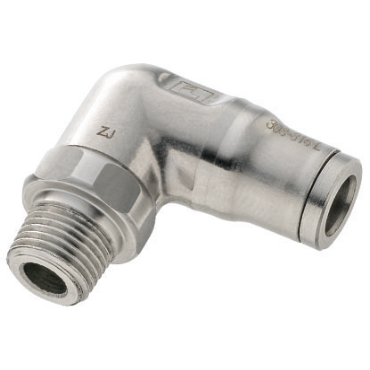

Legris 38891217 Push to Connect Fitting

Product Description

Legris 38891217 is a push to connect fitting designed for fluid connections in demanding environments. Its stainless steel construction ensures durability, especially in aggressive or corrosive settings. The fitting uses Viton elastomer seals to create a secure and leak-free connection. Simply push the tubing into the fitting to form a tight seal. This feature allows for easy connection and disconnection without the need for tools. The fitting can accommodate various tubing materials such as nylon, polyurethane, and copper.

• Maximum working pressure of 290 psi.
• Temperature range from -4 degrees Fahrenheit to 175 degrees Fahrenheit.
• Vacuum rating of 28 inches of mercury.

Product Highlights

This fitting allows for a 360-degree rotation, facilitating ease of assembly and installation.

Product Information

Standard Information

• Brand: Legris
• Part Number: 38891217

Technical Specifications

• Material: 316 Stainless Steel
• Thread Size: 3/8 inches
• Thread Type: BSPT
• End Types: Tubing & BSPT
• Origin: Stainless Steel Push To Connect Fittings
• End Size: 3/8 BSPT(m), 12 mm Tube(f)
• Tube O.D.: 12.000 mm
• Number of Ends: 2
• Fitting Angle: 90 degrees
• Fitting Description: 90 degrees Male Elbow
• Size Type: Metric Sizes
• Weight: 0.132 LB
• EAN or UPC: 820099293219
