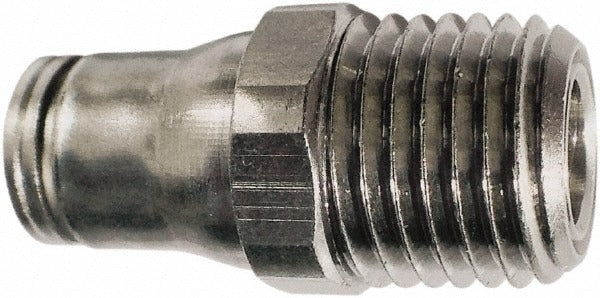

Legris 3675 06 10 Male Connector Tube Fitting Bspt

Product Description

The LEGRIS 3675 06 10 is a push-to-connect male connector tube fitting designed for fast, tool-free plumbing and pneumatic connections in both liquid and gas service applications. Built from nickel-plated brass, this fitting accepts a 6mm outside diameter tube on each end and terminates with a 1/8 inch BSPT male thread. It is rated to 435 psi maximum working pressure and handles temperatures from -4 degrees F to 302 degrees F. The FKM O-ring construction ensures reliable sealing across a wide range of media. Plumbing professionals, industrial maintenance technicians, and pneumatic system installers use this fitting in tight-space installations where speed and integrity are both critical.

This fitting is suited for residential and light commercial plumbing systems, pneumatic control lines, and instrumentation tubing where BSPT threaded ports are standard. Its push-to-connect design allows for quick tube insertion and secure engagement without additional tools. Approved for both liquid and gas service, it is appropriate for compressed air, hydraulic, and fluid transfer lines operating within its rated pressure and temperature range. The compact body dimensions make it practical in manifold assemblies, panel-mount applications, and OEM equipment builds.

Key Features

• Push-to-connect design allows tool-free tube insertion for faster assembly and service
• Nickel-plated brass body resists corrosion in both wet and dry service environments
• Rated to 435 psi maximum working pressure for demanding pneumatic and hydraulic lines
• FKM O-ring provides reliable sealing compatibility with a broad range of liquids and gases
• Wide temperature range of -4 degrees F to 302 degrees F suits varied installation conditions
• Compliant with RoHS, ATEX, PED, REACH, FDA 21CFR, and ISO 14743 standards

Compatibility

Designed for use with 6mm outside diameter tubing on push-to-connect systems requiring a 1/8 inch BSPT male thread port. Rated for liquid and gas service. Verify thread form and tube OD before installation, as BSPT is not interchangeable with NPT or BSP parallel thread fittings.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or instrumentation technician familiar with push-to-connect fittings and BSPT thread standards. Depressurize and isolate the system completely before making or breaking any connection. Ensure the tube end is cleanly cut, deburred, and inserted fully until it bottoms out in the fitting body for a proper seal. BSPT threads are tapered and require appropriate thread sealant; do not substitute NPT or parallel BSP fittings in BSPT-ported equipment.
