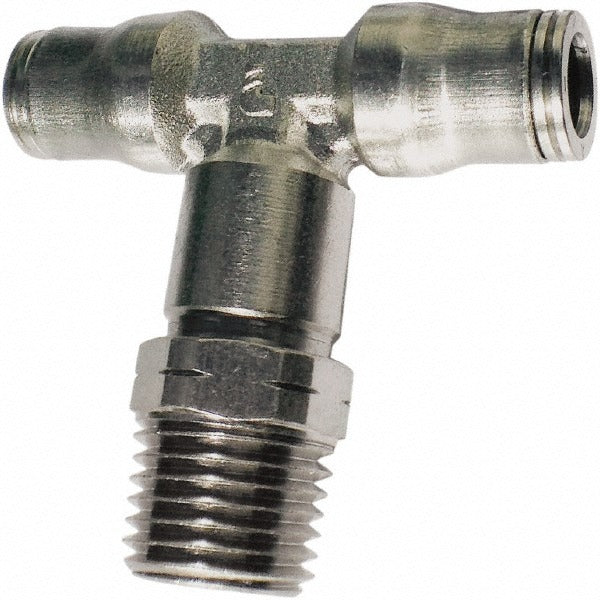

Legris 3608 10 13 Male Branch Tee Push-to-connect

Product Description

The LEGRIS 3608 10 13 is a push-to-connect male branch tee tube fitting constructed from nickel-plated brass. It uses a tube-in, male-thread-out, tube-in connection arrangement with a 1/4-inch BSPT male thread, accepting tubing with a 10mm outside diameter. The fitting is rated to 435 psi maximum working pressure and handles both liquid and gas service across a temperature range of -4 degrees F to 302 degrees F. The FKM o-ring provides reliable sealing in demanding environments. Licensed HVAC technicians, plumbers, and pipefitters install this type of fitting when routing pneumatic lines or fluid circuits through instrumentation and process control assemblies.

The LEGRIS 3608 10 13 is suited for light industrial, commercial, and process applications where a push-to-connect branch point is needed on a pneumatic or fluid line. Its dual-tube, male-thread tee geometry allows a branch takeoff while maintaining inline tube continuity. The fitting is approved for use with both liquids and gases, making it appropriate across a wide range of compressed air, instrumentation, and light fluid-transfer installations.

Key Features

• Push-to-connect design for tool-free tube insertion and secure retention
• Male branch tee configuration: tube x 1/4-inch BSPT male x tube
• Nickel-plated brass body resists corrosion in wet and humid service environments
• 435 psi maximum working pressure supports compressed air and process fluid applications
• FKM o-ring sealing compatible with a broad range of liquid and gas media
• Wide service temperature range: -4 degrees F to 302 degrees F
• Compliant with RoHS, ATEX, PED, REACH, ISO 14743, FDA 21CFR, and UL94 V-0 standards

Compatibility

Designed for use with 10mm outside diameter tubing and 1/4-inch BSPT male threaded ports in pneumatic and fluid systems handling liquid or gas media.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or instrumentation technician. Depressurize and isolate the line completely before removing or installing any fitting. Ensure tubing is cut cleanly and squarely, and that the tube end is fully seated in the fitting before applying system pressure. BSPT threads are tapered and self-sealing; do not over-torque or apply excessive sealant.
