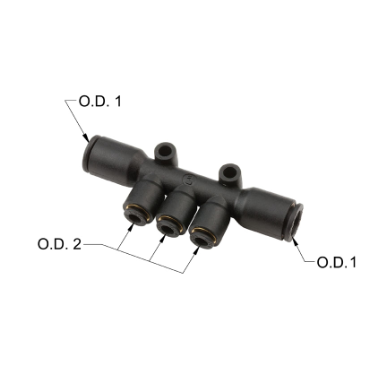

Legris 33040806 Push to Connect Fitting

Product Description

Legris 33040806 push-to-connect fitting is designed for quick and easy connections of semirigid plastic tubing in pneumatic systems. This fitting features a body made from glass-filled nylon and nickel-plated brass threaded components. The elastomer seals are made from buna-nitrile, ensuring a reliable connection. To connect the tubing, simply push it into the patented stainless steel gripping ring. Disconnection is also straightforward, requiring low force and no tools. This reusable fitting does not deform tubing and is compatible with nylon, polyurethane, polyethylene, and Teflon tubing.

• Easy push-to-connect design
• Reusable and low-force disconnection
• Suitable for pneumatic applications

Product Highlights

Engineered for reliable, leak-free pneumatic connections with minimal labor.

Product Information

Standard Information

• Brand: Legris
• MPN: 33040806

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Fitting Angle: 90°
• Material: Nylon Body
• Fitting Description: Multiple Tee w/ Mounting Holes
• End Types: Tubing
• End Size: 5/16 or 8 mm Tube(f)
• Size Type: Metric Sizes
• No. of Ends: 5
• Origin: Plastic Push to Connect Fittings
• Height: 24.500 mm
• Overall Length: 74 mm
• Tube O.D. 1: 5/16 in, 8 mm
• Tube O.D. 2: 6 mm
• Weight: 0.072 LB
• EAN or UPC: 820099265483
