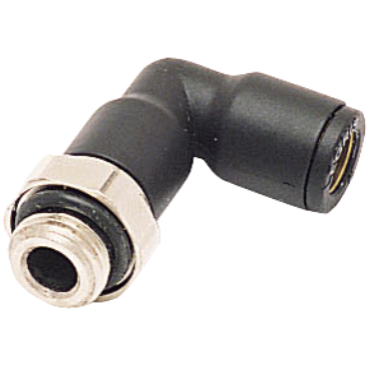

Legris 31690410 Push to Connect Fitting

Product Description

The Legris 31690410 is a push-to-connect fitting designed for ease of use in various plumbing applications. This fitting features an extended male elbow suitable for four millimeter outer diameter tubing. It is crafted to ensure a secure connection with a one eighth BSPP thread. The nylon body with O-ring seal, combined with a nickel-plated brass base, enhances durability and performance.

• Extended male elbow for 4 mm O.D. tubing
• Compatible with 1/8 male BSPP
• Constructed from nylon with nickel-plated brass

Product Highlights

This fitting is ideal for fluid transport in tight spaces, providing a reliable connection in HVAC and plumbing systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31690410

Technical Specifications

• End Size: 5/32 or 4 mm Tube (f)
• Thread Size: 1/8
• Thread Type: BSPP
• Material: Nylon body with O-ring seal, nickel-plated brass base
• Overall Length: 19 mm
• Origin: Plastic Push to Connect Fittings
• Tube O.D.: 4.000 mm
• No. of Ends: 2
• Hex Size: 13 mm
• Fitting Description: Extended Male Elbow
• End Types: Tubing & BSPP
• Fitting Angle: 90°
• Height: 22.500 mm
• Weight: 0.02 LB
• EAN or UPC: 820099244372
