Legris 31661012 Push to Connect Fitting

Product Description

Legris 31661012 is a push-to-connect fitting designed for connecting semi-rigid plastic tubing in pneumatic applications. This fitting simplifies the connection process, requiring minimal labor. The body is made from glass-filled nylon, while the threaded components are nickel-plated brass. Buna-nitrile elastomer seals ensure a reliable, leak-free connection.

• Union reducer from twelve millimeter tubing to ten millimeter tubing
• Reusable fittings that do not deform the tubing
• Low force is needed for connection and disconnection

Product Highlights

Easy installation and disconnection without tools; ideal for pneumatic systems using nylon, polyurethane, polyethylene, or Teflon tubing.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31661012

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Origin: Plastic Push to Connect Fittings
• Number of Ends: 2
• Size Type: Metric Sizes
• End Types: Tubing
• Fitting Description: Reducer
• End Size: 10 mm Tube(f)
• Fitting Angle: Straight
• Material: Nylon

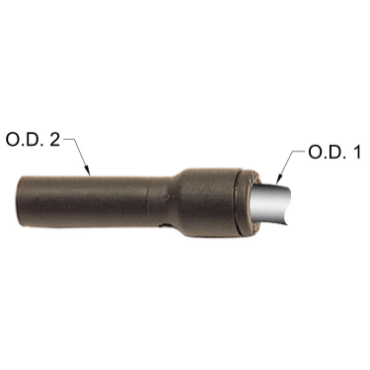

• Tube O.D. 1: 10 mm
• Tube O.D. 2: 12 mm
• Weight: 0.041 LB
