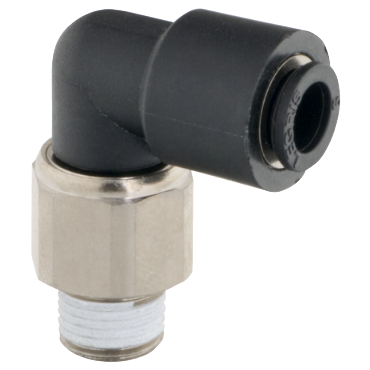

Legris 31591213 Push to Connect Fitting 12mm O.D. 1/4 BSPT

Product Description

The Legris 31591213 is a push to connect fitting designed for efficient fluid transfer. This fitting accommodates twelve millimeter outer diameter tubing and features a quarter inch male BSPT thread for easy connection.

• Fitting is suitable for various applications, enhancing workflow.
• Constructed from nylon with a nickel-plated brass base.
• Includes pre-applied thread sealant for reliable sealing.

Product Highlights

Use this compact elbow for versatile plumbing and pneumatically operated systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31591213

Technical Specifications

• Fitting Angle: 90°, Swivel
• Thread Type: BSPT
• Material: Nylon body, nickel-plated brass base, pre-applied thread sealant
• Thread Size: 1/4
• Overall Length: 32 mm
• Origin: Plastic Push to Connect Fittings
• Tube O.D.: 12.000 mm
• Hex Size: 21 mm
• End Size: 12 mm Tube(f)
• No. of Ends: 2
• End Types: Tubing & BSPT
• Fitting Description: Oscillating Compact Elbow
• Height: 44.500 mm
• Weight: 0.156 LB
• EAN or UPC: 820099241074
