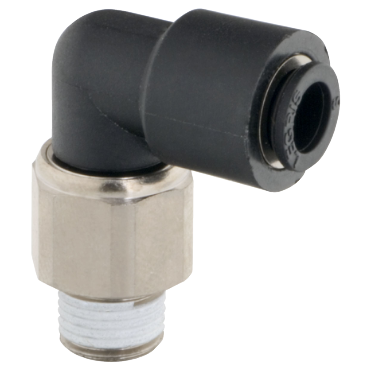

Legris 31590813 Push to Connect Fitting

Product Description

The Legris 31590813 is a push-to-connect fitting designed for use with eight millimeter O.D. tubing. Made from nylon with a nickel-plated brass base, this fitting is suitable for various plumbing and pneumatic applications.

• Oscillating compact elbow design
• Compatible with 8mm O.D. tubing
• 1/4 Male BSPT thread

Product Highlights

This fitting provides a reliable connection for tubing and includes a swivel feature for ease of use in tight spaces.

Product Information

Standard Information

• Brand: Legris
• Part Number: 101903723
• Availability: In Stock

Technical Specifications

• Hex Size: 17 mm
• End Types: Tubing & BSPT
• Fitting Angle: 90 degrees, Swivel
• End Size: 5/16 or 8 mm Tube(f)
• Material: Nylon body, nickel-plated brass base, pre-applied thread sealant
• Fitting Description: Oscillating Compact Elbow
• No. of Ends: 2
• Overall Length: 24.5 mm
• Thread Type: BSPT
• Origin: Plastic Push to Connect Fittings
• Thread Size: 1/4
• Tube O.D.: 8.000 mm
• Height: 28.500 mm
• Weight: 0.092 LB
• EAN or UPC: 820099240954
