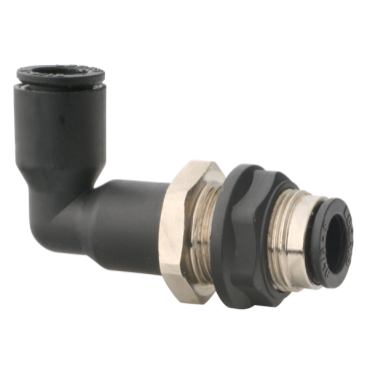

Legris 31390400 Push to Connect Fitting

Product Description

The Legris 31390400 is a push to connect fitting designed for fluid transfer applications. This fitting connects easily to tubing with an outer diameter of four millimeters, allowing for quick assemblies and disassemblies without requiring tools.

• Max working pressure: 290 psi
• Temperature range: -4 degrees Fahrenheit to 175 degrees Fahrenheit
• Rotates 360 degrees for easier installation

Product Highlights

This fitting is ideal for pneumatic and fluid systems. Its design ensures a secure fit and efficient flow.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31390400

Technical Specifications

• No. of Ends: 2
• End Types: Tubing
• Body Material: Technical Polymer
• Overall Length: 17 mm
• Tube O.D.: 4.000 mm
• Height: 21.000 mm
• Material: Nylon Body
• End Size: 5/32 or 4 mm Tube(f)
• Origin: Plastic Push to Connect Fittings
• Fitting Description: Equal Bulkhead Elbow
• Fitting Angle: 90 degrees
• Weight: 0.042 LB
• EAN or UPC: 820099234427
