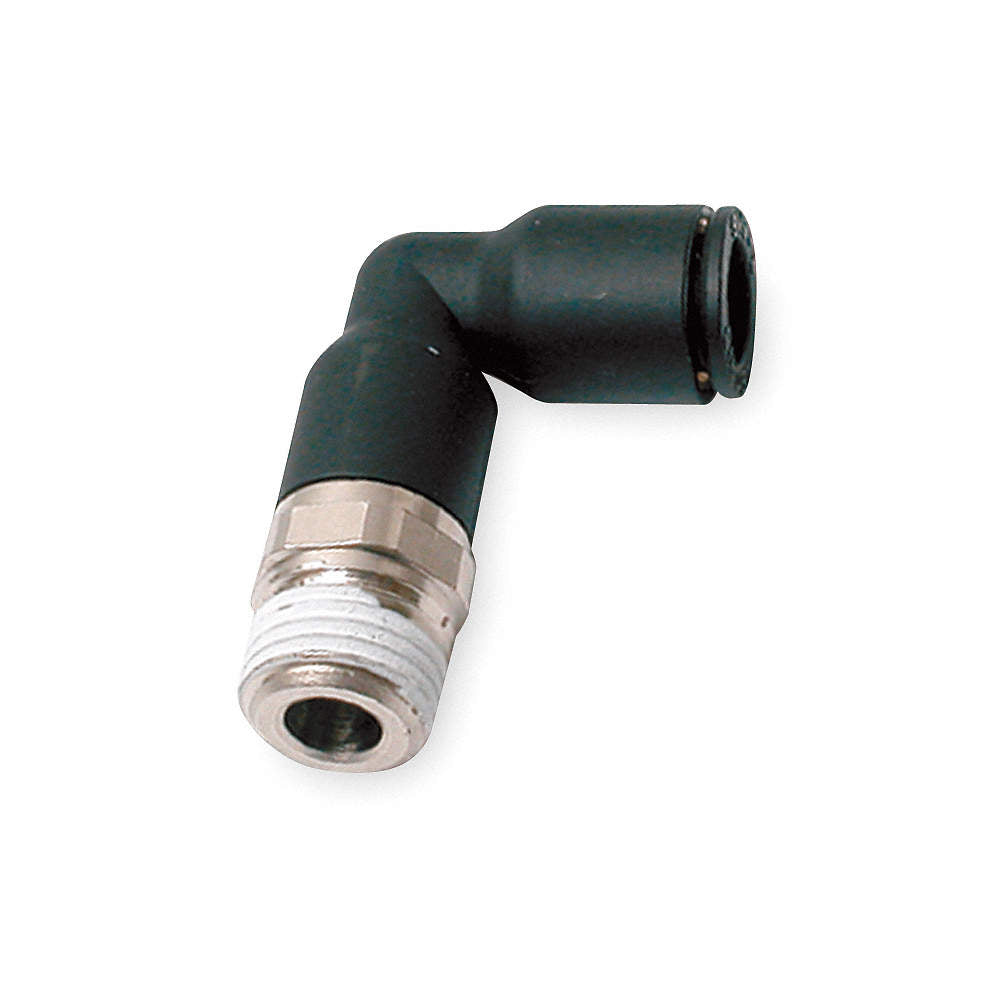

Legris 31290411 90 Male Elbow

Product Description

The Legris 31290411 is a 90 Male Elbow fitting designed for efficient connections in pneumatic applications. This push-to-connect fitting enables quick assembly of semirigid plastic tubing with minimal effort. The body is made from glass-filled nylon, ensuring durability, while the threaded parts are constructed of nickel-plated brass for corrosion resistance. The buna-nitrile elastomer seals provide a leak-proof connection by simply pushing the tubing into the patented stainless steel gripping ring. This fitting features a release button for easy disconnection without tools.

• Extended Male Elbow for 5/32 or 4 mm O.D. Tubing
• 1/8 Male NPT
• Rotates 360° for convenient installation

Product Highlights

The Legris fittings are reusable and designed to not deform tubing, making them ideal for various applications.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31290411

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Fitting angle: 90°
• Material: Nickel-Plated Brass
• Thread type: NPT
• End types: Tubing & NPT
• Height: 0.910 inches
