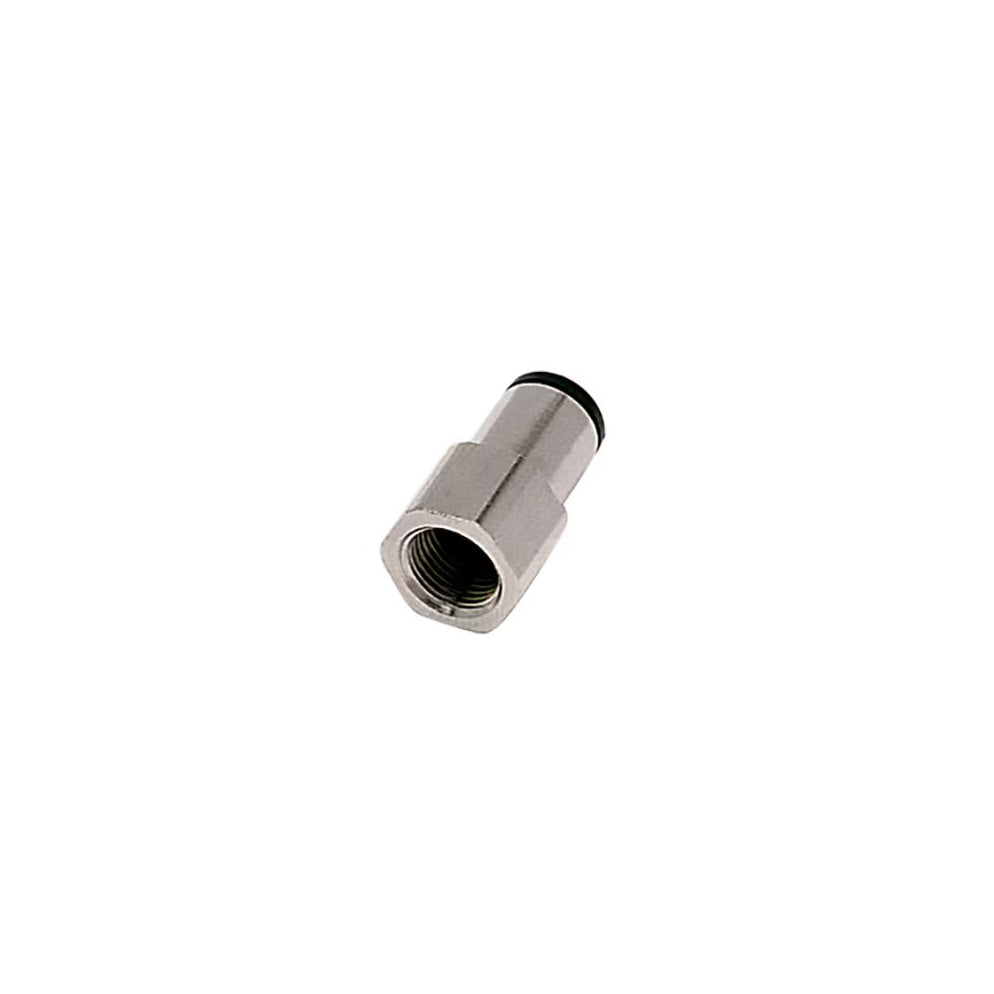

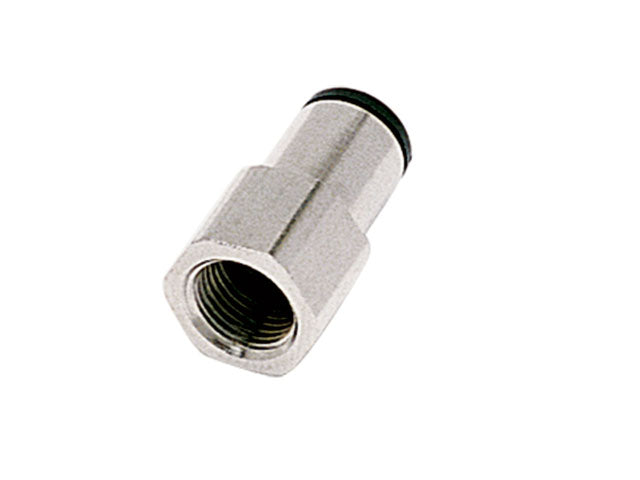

Legris 31141417 Push to Connect Fitting | 14mm Tube Female Connector

Product Description

Legris 31141417 is a push-to-connect fitting designed for use with 14mm outer diameter tubing. This fitting features a straight female connector designed to connect semirigid plastic tubing in pneumatic systems with ease. The body of the fitting is made from glass-filled nylon, while the threaded parts are made of nickel-plated brass. Buna-nitrile elastomer seals ensure reliable performance.

• Straight female connector for 14mm tubing
• Compatible with 3/8 female BSPP
• Simple push-to-connect mechanism requires no tools

Product Highlights

This fitting allows for quick and easy connections, making it suitable for various pneumatic applications. A patented gripping ring keeps the tubing securely in place without deformation, ensuring a leak-free joint.

Product Information

Standard Information

• Brand: Legris
• Part #: 101904561

Technical Specifications

• Thread Type: BSPP
• Hex Size: 22 mm
• Material: Nylon body, nickel-plated brass base
• Thread Size: 3/8
• No. of Ends: 2
• Fitting Description: Straight Female Connector
• End Size: 14 mm Tube(f)
• Weight: 0.308 lb
