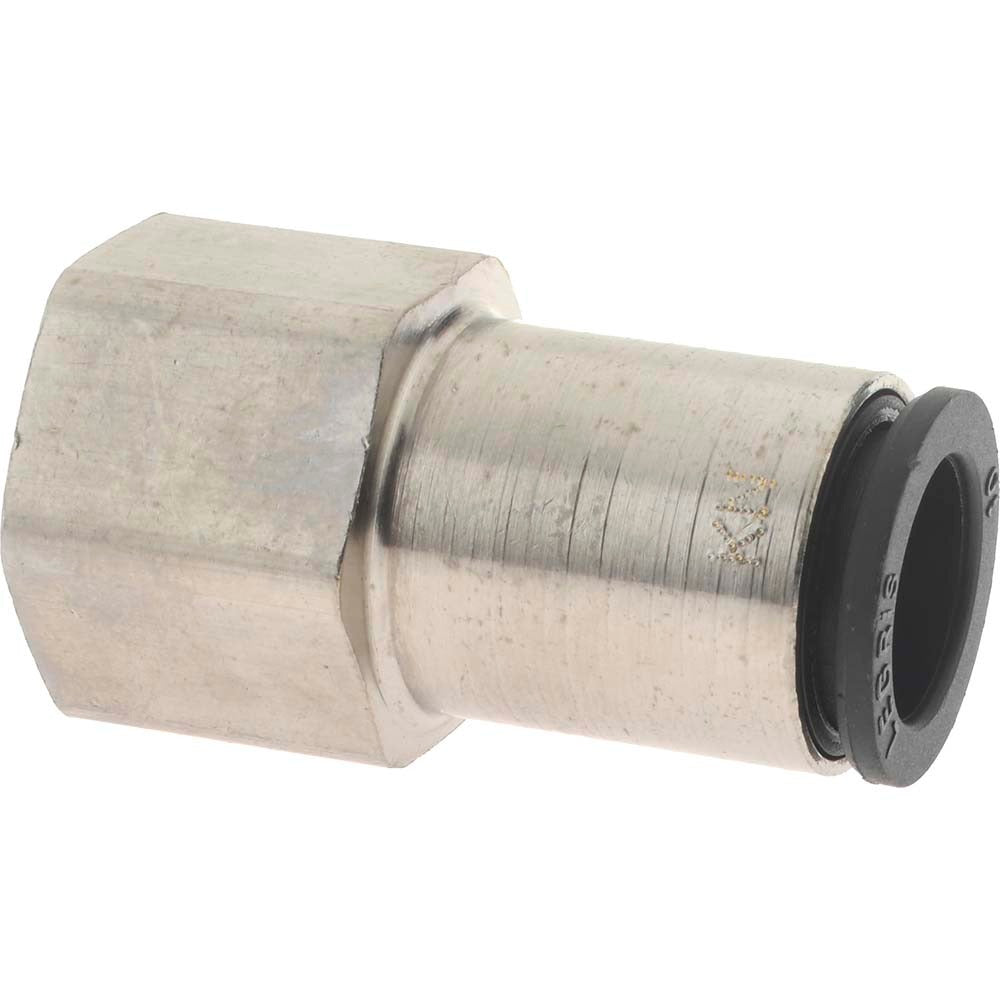

Legris 3114 10 17 Straight Push-to-connect Fitting 3/8 Bspp

Product Description

The LEGRIS 3114 10 17 is a straight push-to-connect tube fitting designed for quick, tool-free connections in pneumatic and fluid transfer systems. It accepts tubing with a 10mm outside diameter and connects to a 3/8 BSPP female port. The body is nickel-plated brass, which provides corrosion resistance suitable for compressed air and compatible fluid lines. Rated to 290 psi maximum working pressure, this fitting handles the pressure demands of most industrial and commercial pneumatic circuits. Operating temperature range runs from -4 degrees F to 175 degrees F. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This fitting is suited for pneumatic control lines, fluid distribution manifolds, and instrumentation plumbing where a straight inline connection is required. The BSPP thread type makes it appropriate for European-standard equipment and machinery that uses parallel British Standard pipe threads. Packaged as a single unit, it is commonly used in OEM assembly, maintenance repair, and retrofit applications on industrial equipment, HVAC pneumatic controls, and process fluid systems operating within its rated temperature and pressure range.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Nickel-plated brass construction for corrosion resistance in pneumatic and compatible fluid service
• Rated to 290 psi maximum working pressure
• Accepts 10mm OD tubing with a 3/8 BSPP threaded port connection
• Wide service temperature range: -4 degrees F to 175 degrees F
• Compliant with RoHS, REACH, PED, and ISO 14743 standards

Compatibility

Designed as an OEM-style straight push-to-connect fitting for pneumatic and fluid systems using 10mm OD tubing and 3/8 BSPP threaded ports on equipment meeting the rated pressure and temperature specifications.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or pneumatic system technicians. Depressurize and de-energize the system completely before removing or installing any push-to-connect fittings. Confirm tube OD, thread standard, and working pressure compatibility before installation. BSPP threads use a parallel sealing profile — ensure the mating port and any sealing elements are appropriate for the application and comply with applicable codes.
