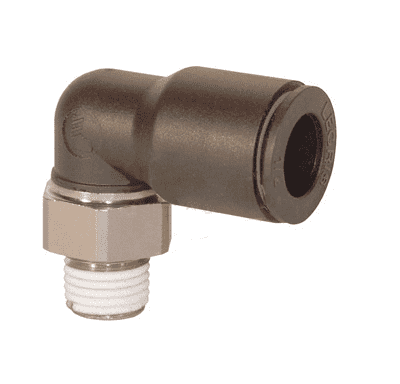

Legris 31096011 90 Male Elbow

Product Description

Legris 31096011 is a 90-degree male elbow fitting used for connecting semi-rigid plastic tubing in pneumatic systems. This fitting features a push-to-connect design for easy installation. The body is made from strong glass-filled nylon while threaded parts are crafted from nickel-plated brass, ensuring durability and reliability in various applications.

• Designed for 3/8 inch outer diameter tubing.
• Compatible with 1/8 inch NPT threads.
• Requires minimal effort for connections or disconnections.

Product Highlights

This fitting offers a maintenance-free connection with a patented gripping mechanism, making it reusable and easy to handle.

Product Information

Standard Information

• Brand: Legris
• MPN: 31096011

Technical Specifications

• Max Working Pressure: 290 psi
• Working Temperature: -4 degrees F to 175 degrees F
• Vacuum Rating: 28 Hg
• Fitting Angle: 90 degrees
• Weight: 0.037 lb
• Body Material: Nickel-Plated Brass
• Thread Size: 1/8
• Tube Outer Diameter: 3/8 inches
