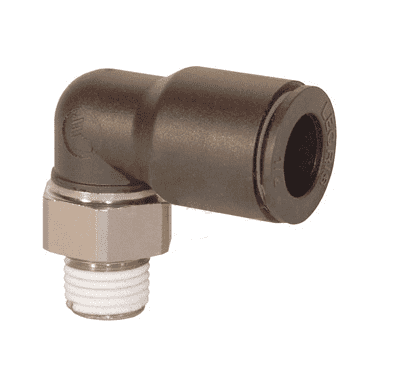

Legris 31095314 90° Male Elbow

Product Description

Legris 31095314 is a 90° male elbow fitting designed for use with 1/8 inch O.D. tubing and 1/4 inch male NPT threads. This fitting connects semirigid plastic tubing in pneumatic applications efficiently without the need for tools. The body is made from glass-filled nylon, and the threaded parts are nickel-plated brass, ensuring reliability in various environments.

• Easy installation by pushing tubing into the fitting
• Reusable design reduces material waste
• Compatible with nylon, polyurethane, polyethylene, or Teflon tubing

Product Highlights

This fitting allows for quick assembly and disassembly, with a release button for convenience. It provides a tight, leak-free connection and can rotate 360° for installation flexibility.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31095314

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 inHg
• No. of Ends: 2
• Body Material: Nickel-Plated Brass
• Thread Size: 1/4
• Size Type: Fractional Sizes
• Tube O.D.: 1/8 in
• End Types: Tubing & NPT
• Fitting Angle: 90°
• Weight: 0.039 LB
• EAN or UPC: 820099222004
