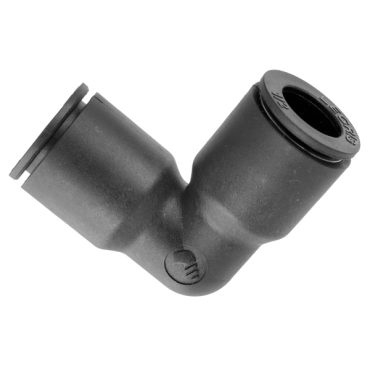

Legris 31020400 90 Degree Union Elbow Fitting 4mm

Product Description

Legris 31020400 is a 90 degree union elbow fitting designed for four millimeter outer diameter tubing. This fitting is suitable for various pneumatic applications and provides a reliable connection with minimal installation effort. The body material is made of glass-filled nylon, ensuring durability and resistance to corrosion. The nickel-plated brass threaded components offer enhanced strength. A special feature is the patented stainless steel gripping ring that securely holds the tubing, creating a leak-free connection by simply pushing the tubing into the fitting. The included plastic release button allows for easy disconnection without the need for tools.

• Fits four millimeter O.D. tubing
• Reusable and does not deform tubing
• Low force required for connections and disconnections

Product Highlights

This union elbow fitting is ideal for fast, effective connections in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31020400

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 inHg
• End Types: Tubing
• Overall Length: 3/4 in
• End Size: 5/32 or 4 mm Tube(f)
• Body Material: Nylon
• Tube O.D.: 4.000 mm, 5/32 in
• Fitting Description: 90° Union Elbow
• Fitting Angle: 90°
• Weight: 0.004 lb
• EAN or UPC: 820099208725
