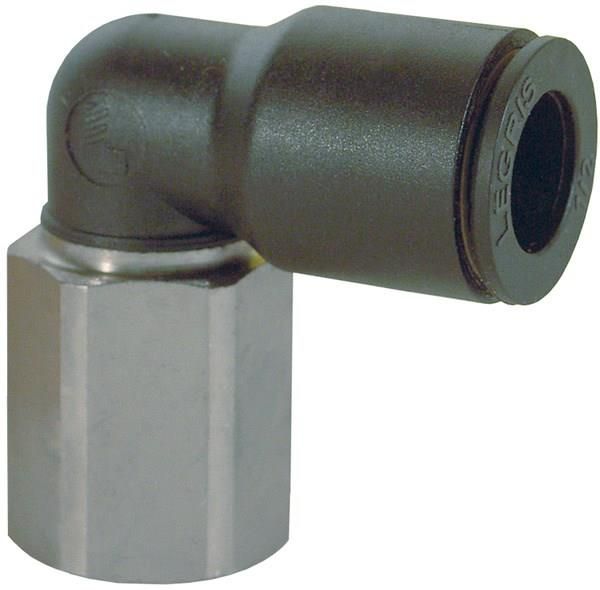

Legris 30095614 90 Female Elbow

Product Description

Legris 30095614 is a 90 degree female elbow fitting designed for use with quarter inch NPT and quarter inch tubing. This push-to-connect fitting simplifies connections in pneumatic applications with a design that minimizes labor and time. The body is made from glass-filled nylon, while the threaded components are constructed from nickel-plated brass. The elastomer seals are made from buna-nitrile, ensuring a tight fit without leaks.

• Easy push-to-connect design
• Compatible with nylon, polyurethane, polyethylene, and Teflon tubing
• Reusable with no deformation of tubing

Product Highlights

Legris fittings are ideal for quick assembly and disassembly with low force required. The unique stainless steel gripping ring holds the tubing securely in place.

Product Information

Standard Information

• Material: Nickel-Plated Brass
• Fitting Angle: 90°

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Tube O.D.: 1/4 in
• Thread Type: NPT
• End Size: 1/4 Tube(f)
• No. of Ends: 2
• Size Type: Fractional Sizes
