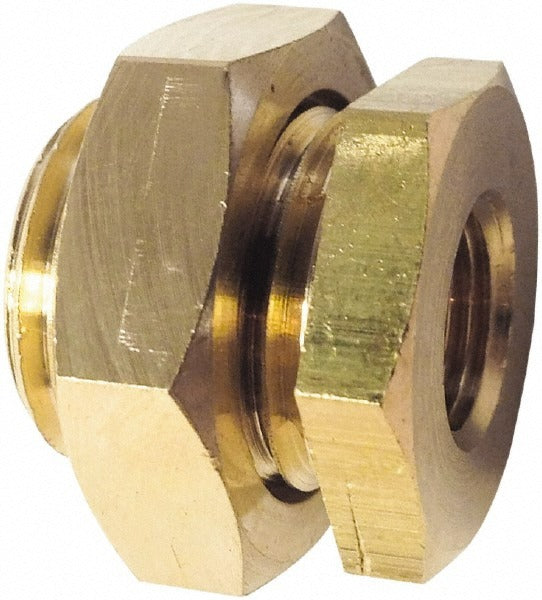

Legris 0117 00 27 Bulkhead Fitting 3/4 in Fbspp X Mbspp

Product Description

The LEGRIS 0117 00 27 is a brass male-female bulkhead fitting designed for industrial pipe assemblies requiring a secure through-panel or through-wall fluid connection. It accepts a 3/4 inch female BSPP thread on one side and a 3/4 inch male BSPP thread on the other, allowing technicians to route pressurized lines through enclosures, manifolds, or bulkhead panels. Rated to 1,000 psi maximum working pressure, the fitting handles a wide service temperature range from -40 degrees F to 302 degrees F. The all-brass construction resists corrosion and holds up in demanding hydraulic and pneumatic plumbing environments. Licensed plumbers, pipefitters, and fluid-systems technicians are the primary installers.

This bulkhead fitting is suited for industrial and commercial fluid-handling systems where a line must pass cleanly through a panel or enclosure wall. Typical applications include hydraulic control panels, compressed-air distribution manifolds, process plumbing skids, and industrial equipment requiring organized through-wall routing. The FBSPP x MBSPP connection type follows British Standard Parallel Pipe thread form, making this fitting appropriate for systems built to metric or international piping standards alongside BSP-compatible components.

Key Features

• 3/4 inch female BSPP thread inlet paired with 3/4 inch male BSPP thread outlet for through-panel installation
• 1,000 psi maximum working pressure for demanding hydraulic and pneumatic service
• Pressure-rated to 3,626 psi burst rating per available spec data
• Operating temperature range of -40 degrees F to 302 degrees F (-40 degrees C to 150 degrees C)
• Solid brass construction provides corrosion resistance and durability in fluid-handling environments
• FBSPP x MBSPP connection classification for compatibility with BSP-standard plumbing components

Compatibility

Designed as an OEM-style replacement or direct-install bulkhead fitting for industrial pipe systems using 3/4 inch FBSPP x MBSPP threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter. Depressurize and drain the system fully before removing or installing any bulkhead fittings. BSP parallel threads require a sealing compound or PTFE tape applied to the threads to achieve a leak-free joint, as the thread form alone does not provide a pressure seal. Verify thread form compatibility before installation, as BSP parallel threads are not interchangeable with NPT or NPTF tapered thread fittings.
