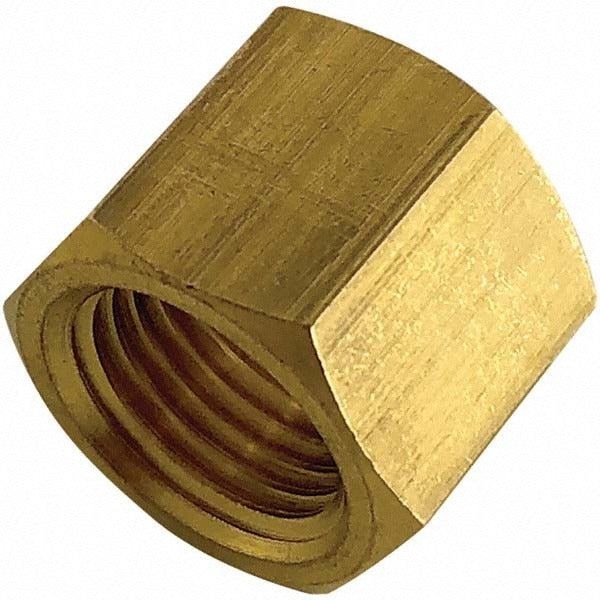

Legris 0110 18 00 Compression Tube Nut Brass 18mm

Product Description

The LEGRIS 0110 18 00 is a brass compression tube nut designed for tube outside diameter to tube inside diameter end connections. It provides a secure, leak-resistant mechanical connection in compressed air, pneumatic, and fluid handling lines. Rated to a maximum working pressure of 536 psi and a temperature range of -40 degrees F to 250 degrees F, this nut is built for demanding industrial and commercial service. The brass construction offers good corrosion resistance and reliable sealing performance in a compact fitting format. Installation is typically performed by licensed plumbers, pipefitters, or industrial maintenance technicians.

This compression tube nut is suited for use in industrial fluid and pneumatic systems where tube OD connections are required. With an 18mm tube outside diameter specification, it fits into assembly lines, process equipment, and compressed air distribution systems. It meets multiple compliance standards including ATEX, PED, Prop 65, REACH, RoHS, and WEEE, making it appropriate for regulated environments in both North American and European applications.

Key Features

• Brass construction for corrosion resistance in fluid and air handling systems
• 18mm tube outside diameter end connection
• Maximum working pressure of 536 psi
• Operating temperature range from -40 degrees F to 250 degrees F
• Compliant with ATEX, PED, Prop 65, REACH, RoHS, and WEEE standards

Compatibility

Designed as an OEM-style replacement compression tube nut for pneumatic and fluid system assemblies requiring an 18mm tube OD connection in brass.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or industrial maintenance technician. Depressurize and isolate the line completely before removing or installing any compression fitting. Hand-tighten the nut first to ensure proper thread engagement, then use an appropriately sized wrench to finish seating without over-torquing the brass threads. Verify the system is leak-free under working pressure before returning to service.
