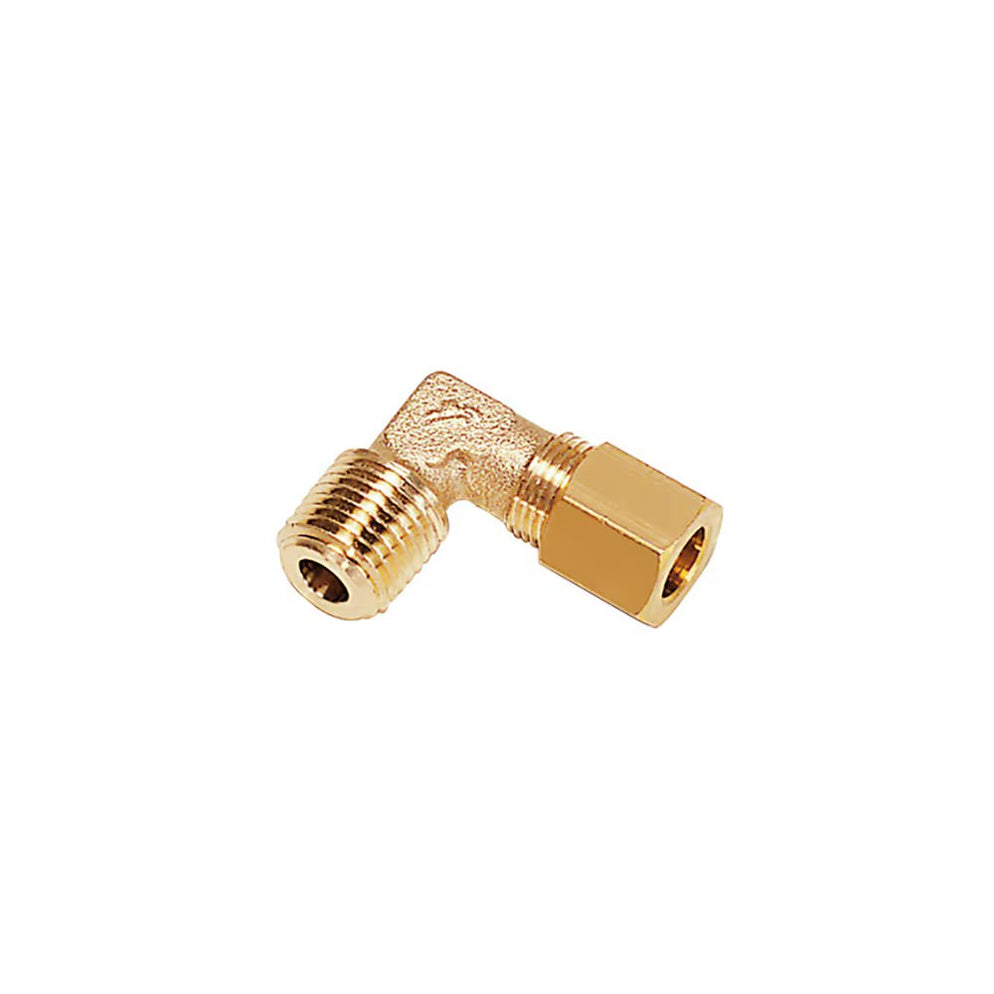

Legris 01092834 Male Elbow Compression Fitting

Product Description

The Legris 01092834 is a male elbow compression fitting designed for optimal connection in fluid systems. It features a ninety-degree elbow suitable for twenty-eight millimeter tube outer diameter applications.

• Fitting Type: Elbow
• End Types: Compression & BSPT
• Material: Brass

Product Highlights

This fitting is important for routing fluid in tight spaces, ensuring reliable connections in various plumbing and HVAC setups.

Product Information

Standard Information

• Brand: Legris
• MPN: 01092834

Technical Specifications

• Compression Nut Hex Size: 42 mm
• Thread Size: 1
• Fitting Angle: 90 degrees
• End Types: Compression & BSPT
• End Size: R1
• Center to Edge of Nut: 54 mm
• Center to End of Thread: 48 mm
• Material: Brass
• Fitting Type: Elbow
• Tube OD: 28 mm
• Across Wrench Flats: 32 mm
• Weight: 0.837 LB
• EAN or UPC: 820099100920
