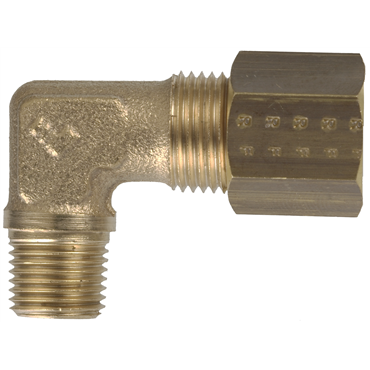

Legris 01090813 Male Elbow Compression Fitting 90 degree R1/4

Product Description

The Legris 01090813 Male Elbow Compression Fitting is designed for reliable connections in pneumatic systems. It features a 90-degree angle, making it suitable for tight spaces. The fitting is compatible with an eight-millimeter outer diameter tube and has a R1/4 BSPT threaded end for secure attachment to other components.

• 90-degree elbow design
• Compatible with eight-millimeter tube OD
• R1/4 BSPT threaded end

Product Highlights

This fitting is ideal for various applications in fluid transport and pneumatic setups. Made of brass, it provides durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Legris
• MPN: 01090813

Technical Specifications

• Fitting Angle: 90 degree
• Compression Nut Hex Size: 14 mm
• Tube OD: 8 mm
• Material: Brass
• Center to End of Thread: 22 mm
• End Types: Compression & BSPT
• End Size: R1/4
• Across Wrench Flats: 10 mm
• Center to Edge of Nut: 28 mm
• Fitting Type: Elbow
• Weight: 0.072 LB
• EAN or UPC: 820099099385
