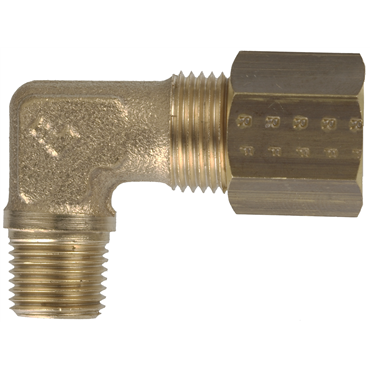

Legris 01090610 Male Elbow Compression Fitting

Product Description

The Legris 01090610 Male Elbow Compression Fitting is designed for reliable connections in fluid transfer systems. The fitting features a 90-degree elbow shape that accommodates a six-millimeter tube outer diameter with an R1/8 BSPT threaded end. This fitting is ideal for applications requiring a secure and leak-proof connection.

• 90-degree fitting designed for six-millimeter tube outer diameter
• R1/8 BSPT threaded end for easy integration
• Made from durable brass for long-lasting performance

Product Highlights

The brass construction and precise design ensure strong and reliable fitting performance.

Product Information

Standard Information

• Brand: Legris
• Part Number: 01090610

Technical Specifications

• End Size: R1/8
• Thread Size: 1/8
• Fitting Angle: 90°
• Tube OD: 6 mm
• Center to Edge of Nut: 22 mm
• Center to End of Thread: 18 mm
• Material: Brass
• Across Wrench Flats: 8 mm
• End Types: Compression & BSPT
• Compression Nut Hex Size: 13 mm
• Fitting Type: Elbow
• Weight: 0.046 LB
• EAN or UPC: 820099098869
