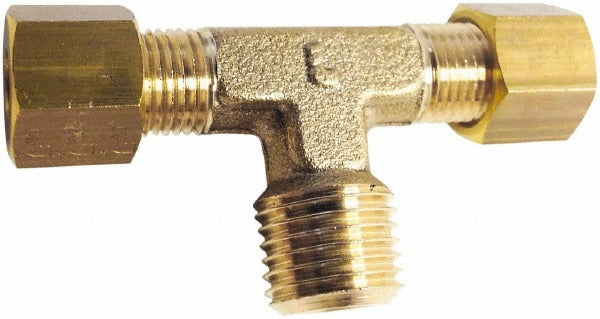

Legris 0108 08 10 Compression Male Branch Tee 1/8 Inch

Product Description

The LEGRIS 0108 08 10 is a brass compression tube male branch tee fitting designed for use in pneumatic and fluid distribution systems. It combines a compression-style tube connection with a male BSPT (British Standard Pipe Taper) threaded end, allowing a branch takeoff from an inline run. The fitting accepts 8 mm outside diameter tubing on the compression ports and carries a 1/8 inch thread size on the male branch. Rated to 232 psi maximum working pressure and a temperature range of -40 degrees F to 212 degrees F (100 degrees C), it is built for demanding industrial environments. Certified to ATEX, PED, CNOMO E07.21.115N, REACH, RoHS, and Prop 65 standards. Installation is handled by pipefitters, pneumatic technicians, or industrial maintenance mechanics.

This fitting is suited for compressed air, inert gas, and compatible fluid distribution lines in industrial and commercial facilities. The tee configuration allows a branch connection to be added to an existing tube run without cutting in a separate tee body. The brass construction provides corrosion resistance in typical dry and lubricated air service. The ATEX certification makes it appropriate for use in classified hazardous-area environments where ignition-source control is required. It ships as a single unit and is commonly used in automation panels, pneumatic control circuits, and process instrumentation runs.

Key Features

• Male branch tee configuration combines compression tube ports with a 1/8 inch BSPT male threaded outlet
• Accepts 8 mm outside diameter tubing on compression ends
• Rated to 232 psi maximum working pressure
• Operating temperature range: -40 degrees F to 212 degrees F (100 degrees C)
• Brass construction for corrosion resistance in compressed air and compatible fluid service
• Certified to ATEX, PED, CNOMO E07.21.115N, REACH, RoHS, and Prop 65 requirements

Compatibility

Designed for pneumatic and fluid distribution systems using 8 mm OD tubing with BSPT-threaded port connections. Verify thread standard and tube OD before installation, as this fitting uses BSPT threading and is not interchangeable with NPT-threaded components.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize and isolate the line completely before removing or installing any fitting. Confirm the mating port accepts BSPT male threads, as BSPT and NPT threads are not compatible despite similar appearance. Do not overtighten the compression sleeve; follow the fitting manufacturer's assembly procedure for the compression end to avoid tube or ferrule damage.
