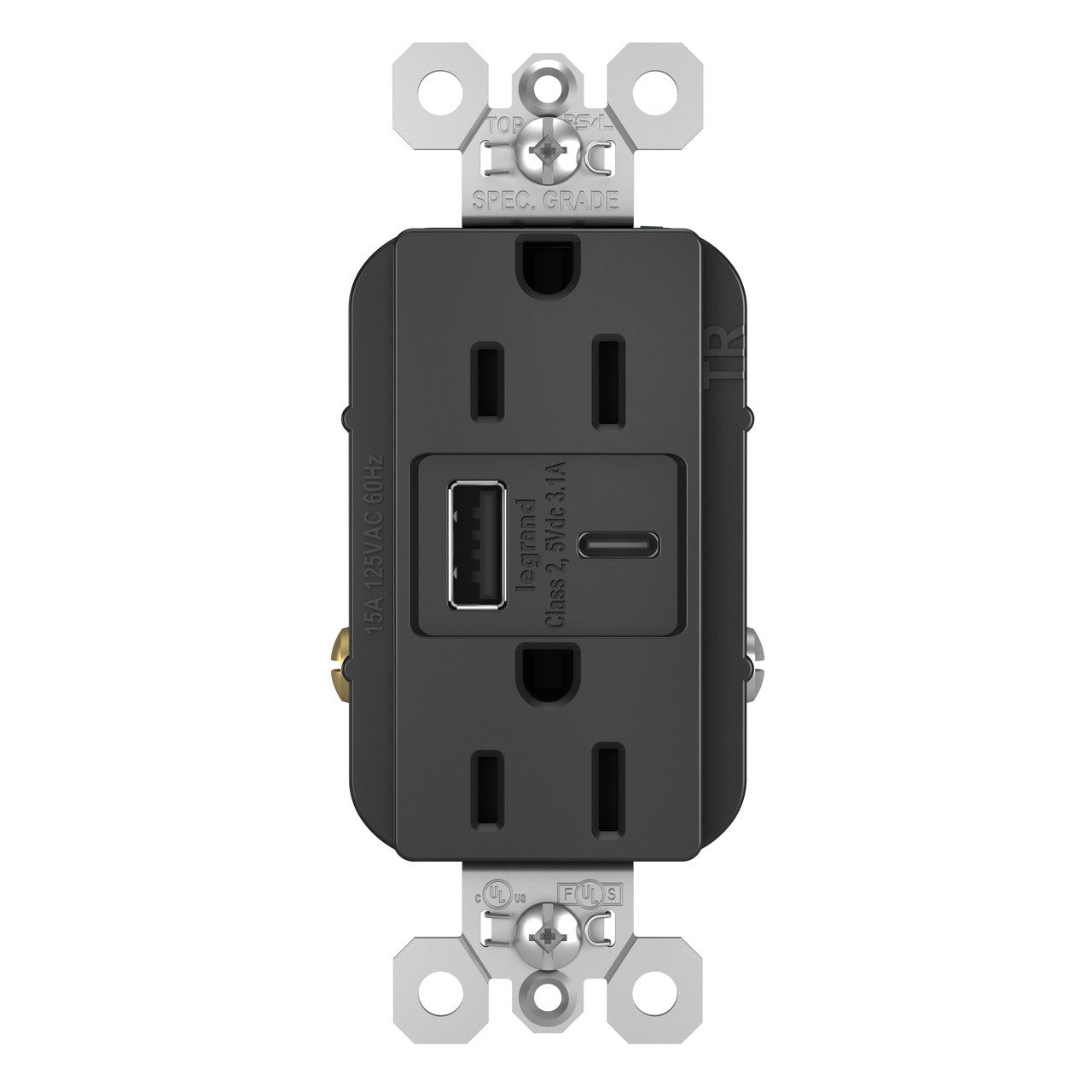

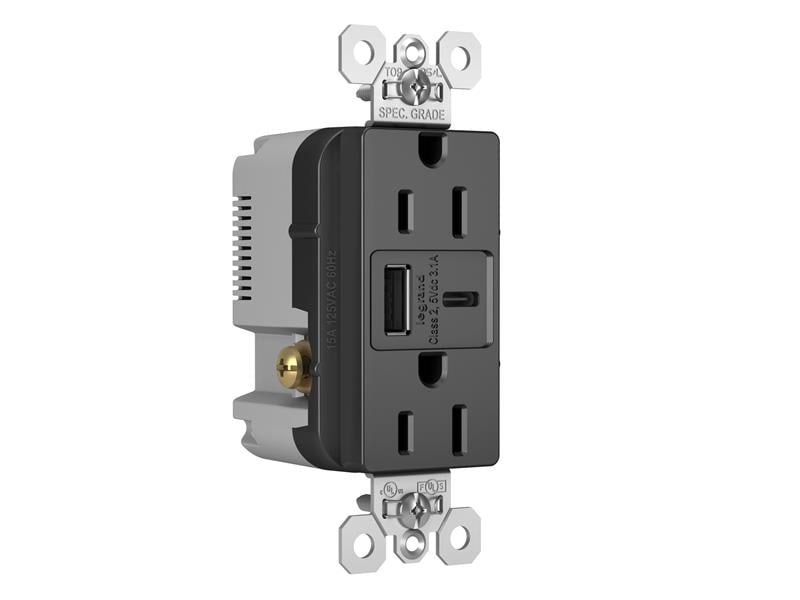

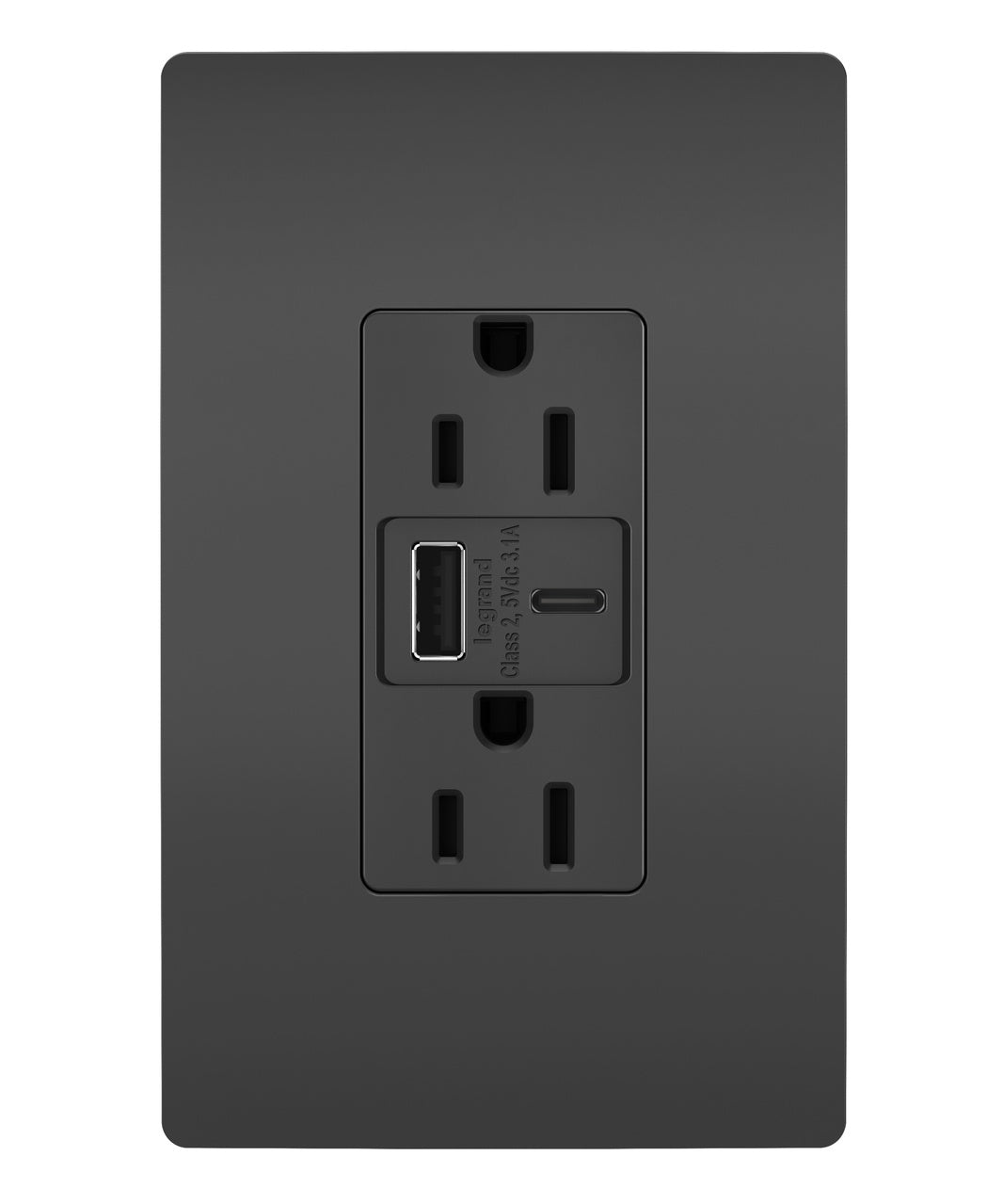

Legrand TR15USBACBK 15A 125V Duplex Tamper-Resistant Receptacle (Duplex)

LEGRAND
Brand: LEGRAND
SKU: TR15USBACBK
Availability: In Stock

Ships same day if ordered by 12 pm
$76.43
$76.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Legrand TR15USBACBK is a combination tamper-resistant 15A 125V duplex receptacle with integrated USB Type-A and Type-C charging. The device features two 3.1A USB charging ports, a patented shutter system to help prevent improper insertion of foreign objects, and automatic self-test every three seconds with an indicator light. SafeLock protection disconnects power if critical components are damaged and the unit uses high-impact-resistant thermoplastic construction.

  • Two integrated USB ports (Type A and Type C) providing 3.1A charging
  • Tamper-resistant patented shutter system and NEC-compliant tamper-resistant design
  • Automatic self-test every three seconds with indicator plus SafeLock protection

Product Highlights

15A 125V duplex tamper-resistant receptacle with two 3.1A USB ports (A and C), automatic self-test, SafeLock protection, tri-drive terminal screws

Product Information

Standard Information

  • Brand: LEGRAND
  • Manufacturer Part Number: TR15USBACBK
  • Country of Origin: China
Technical Specifications
Brand
Legrand
Manufacturer Part Number
TR15USBACBK
Model
TR15USBACBK
Input Voltage
125 V
Current Rating
15 A
NEMA Configuration
5-15R
Number of Receptacles
2 (duplex)
Number of USB Ports
2 (Type A and Type C)
USB Output Current
3.1 A (see notes � may be per-port or total/shared)
USB Wattage
15 W
Tamper-Resistant
Yes (patented shutter system, NEC compliant)
Self-Test
Automatic self-test every 3 seconds with indicator
Protection Feature
SafeLock protection disconnects power if critical components are damaged
Construction Material
High-impact-resistant thermoplastic
Terminal Screw Type
Tri-drive terminal screws
Connection Type
Screw terminals (side)
Wire Size
14 - 10 AWG
Number of Wires
3
Mounting Type
Wall / In-wall
Application
Commercial, Multi-dwelling unit, Residential, Indoor
Certifications
cULus, FEDSPEC, UL Listed
Country of Origin
China
Dimensions (Depth x Height x Width)
1.425 in x 3.28 in x 1.693 in
GTIN
00785007181456
UPC
78500718145
12-Digit UPC
785007181456
