Legrand S122-W Slater Deep Old-Work Switch Outlet Box 22 cu-in 1-Gang

Product Description

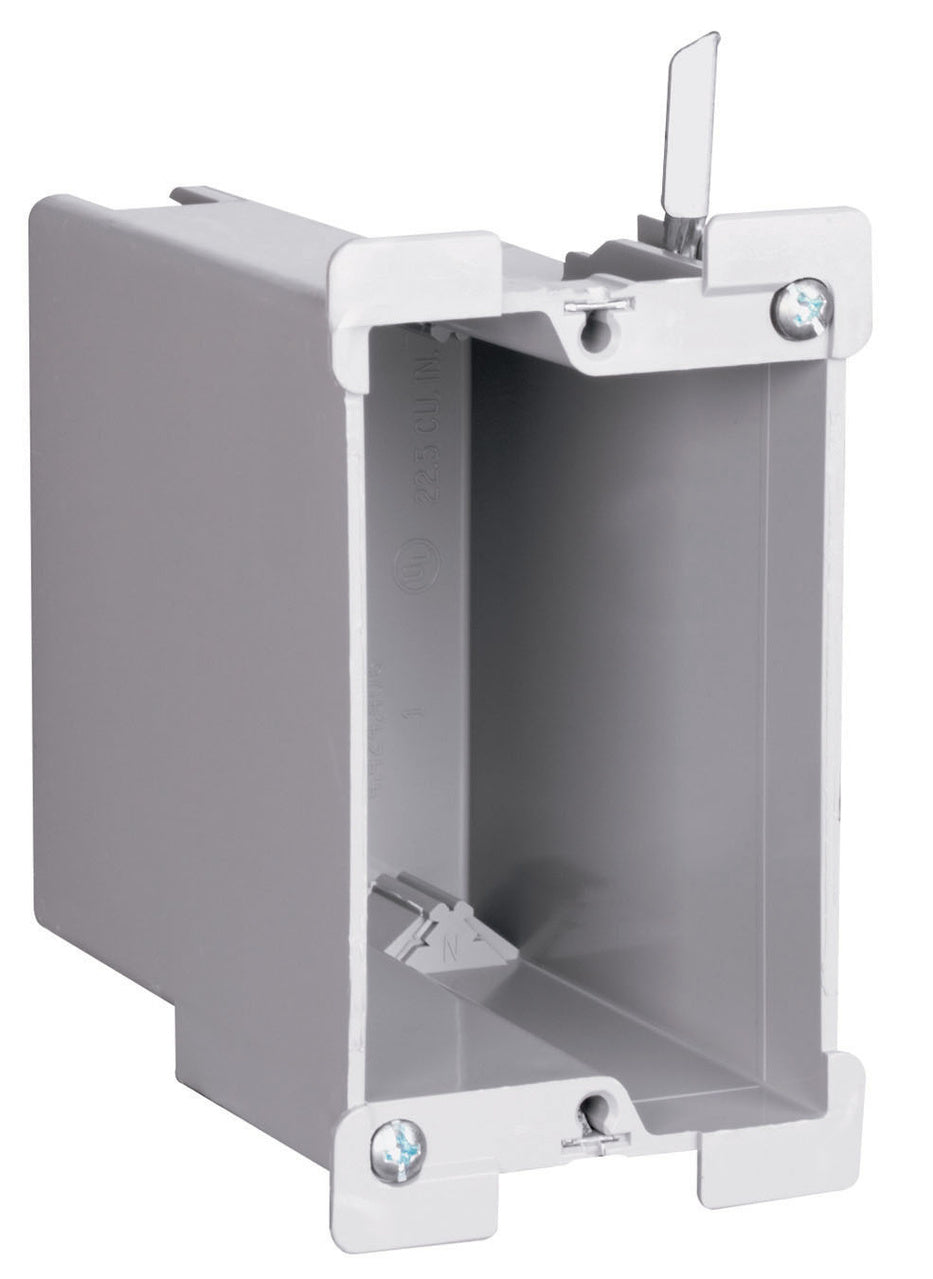

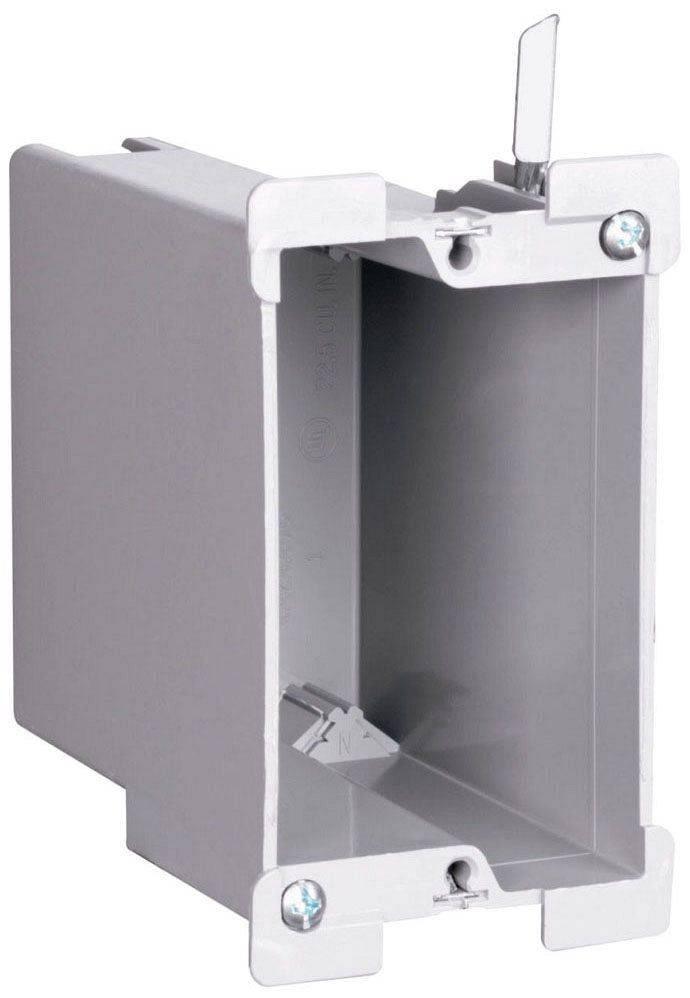

The Legrand S122-W is a single-gang Slater deep old-work switch and outlet box designed for retrofit installations. It features a 22 cu-in thermoplastic body with Quick Click device mounting and a metal swing bracket for fast wall installation. The box includes two auto-clamps for cable retention and accommodates back, top, or bottom cable entry. Overall dimensions are approximately 3.75 in x 2.25 in x 2.87 in.

• 22 cubic-inch thermoplastic single-gang box with Quick Click device mounting and metal swing bracket
• Includes two auto-clamps for cable retention and multiple cable entries (back, top, bottom)
• Swing bracket adjusts from 1-1/4 in down to 1/8 in for old-work (retrofit) installations

Product Highlights

Single-gang, deep old-work switch/outlet box with Quick Click mounting, metal swing bracket, 22 cu-in capacity, and built-in auto-clamps.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: S122-W
• Country of Origin: United States

Technical Specifications

• Brand: Legrand
• Manufacturer: Pass & Seymour
• Manufacturer Part Number: S122-W
• Product Type: Deep old-work switch/outlet box
• Product Series: Slater
• Capacity: 22 cu-in
• Material: Impact-resistant thermoplastic
• Number of Gangs: 1
• Number of Outlets: 1
• Dimensions (L x W x H): 3.75 in x 2.25 in x 2.87 in
• Weight: 0.228 lb
• Mounting: Quick Click device mounting; metal swing bracket
• Mounting Adjustment Range: Adjusts from 1-1/4 in to 1/8 in
• Cable Entry: Back, Bottom, Top
• Auto Clamps: Two auto-clamps
• Box Depth: Deep
• Shape: Rectangular
• Application: Commercial, Residential
• Indoor/Outdoor: Indoor
• Standards/Certifications: UL Listed; cULus Listed; RoHS Compliant
• Country of Origin: United States
• UPC: 785007000000
