Legrand RCD33LA Switch Combination 1 15A 120/125VAC replacement 693LAG

Product Description

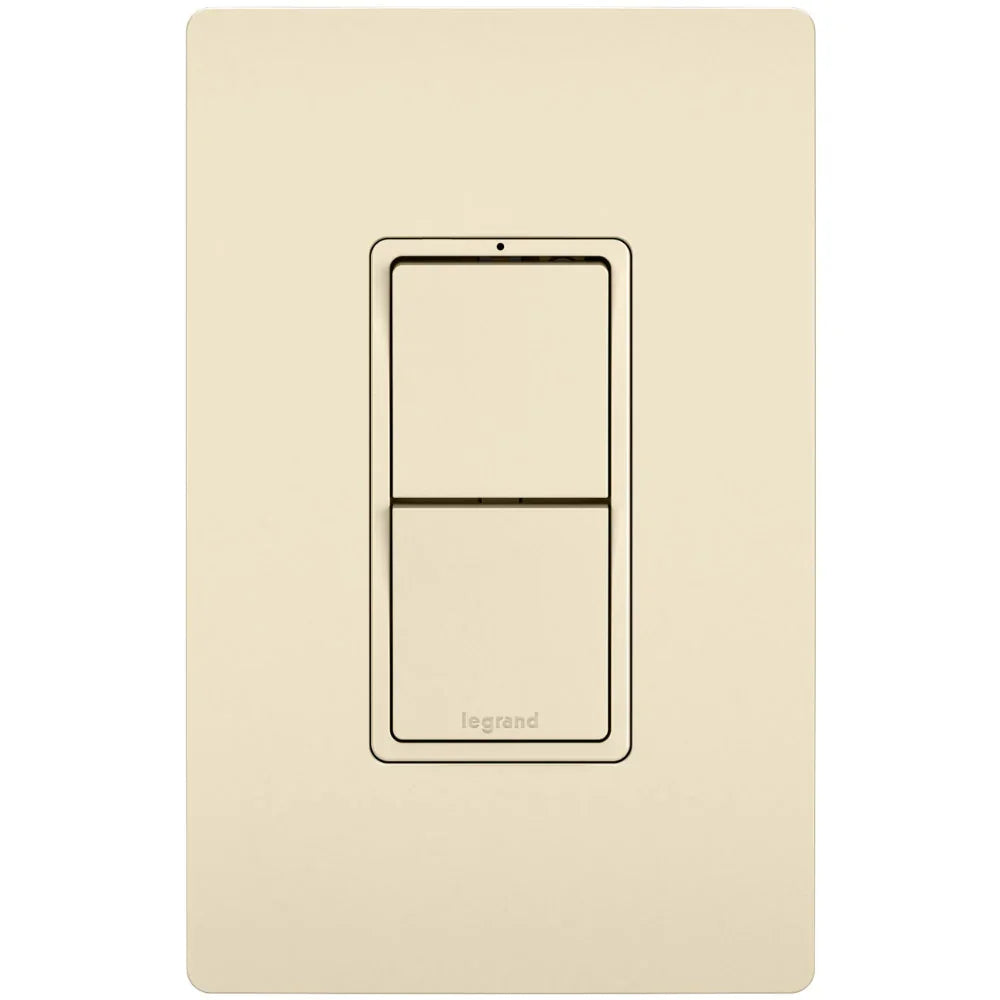

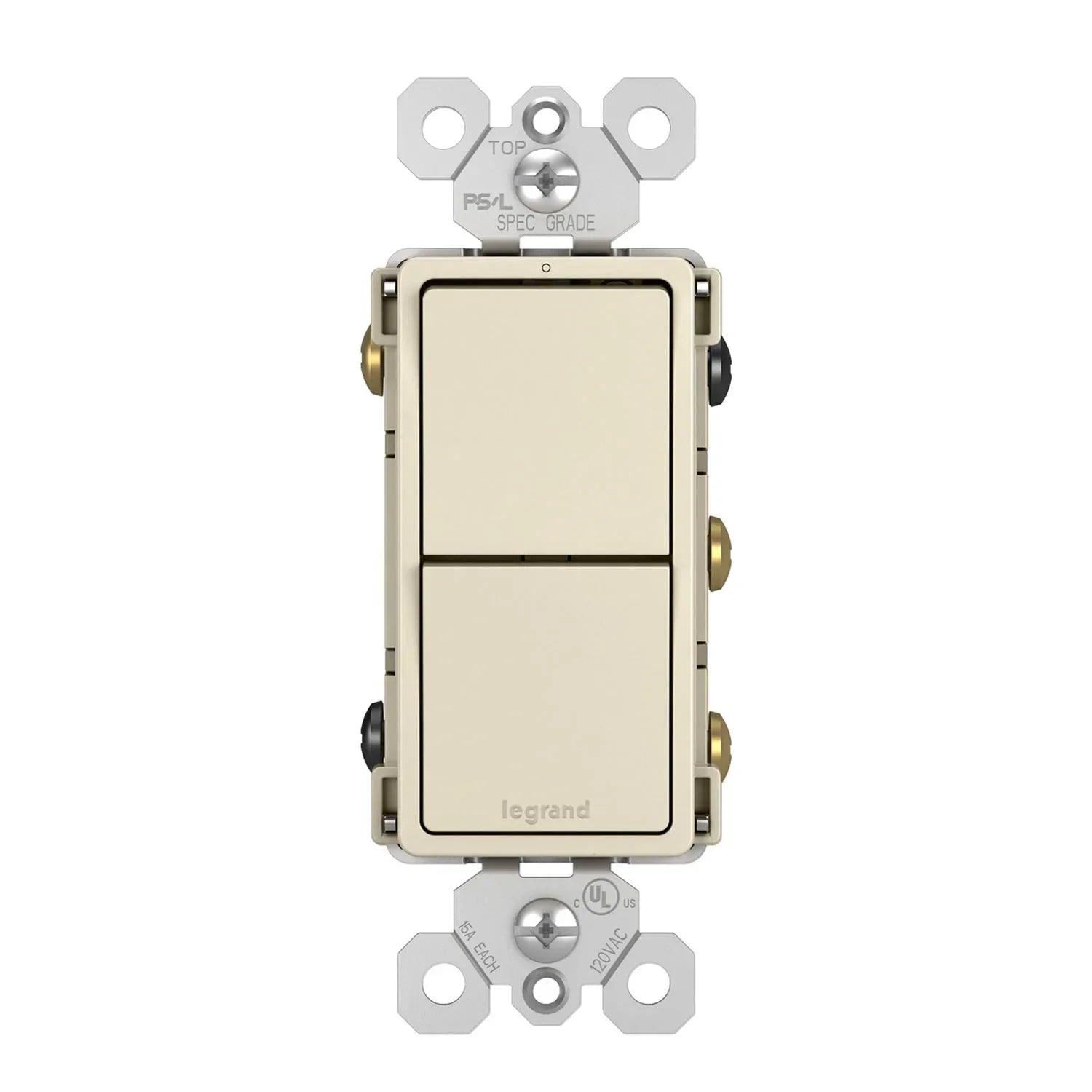

The LEGRAND RCD33LA is a 3-Way Combination Switch rated for 15 A and 120/125 VAC. This non-grounding combination switch features an easily accessible break-off for separate or common feed, allowing two devices to fit into the space of one. It is designed for side wire connections with #12 and #14 AWG, suitable for commercial and residential applications.

• Features an easily accessible break-off for separate or common feed.
• Includes a long-life red neon lamp in the pilot light, rated 1/25 Watt, 125V.
• Designed for side wire connections with #12 and #14 AWG.

Product Highlights

This combination switch allows two devices to fit into the space of one, offering efficient control for various applications.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: RCD33LA
• Country of Origin: Mexico

Technical Specifications

• Type: 3-Way Combination Switch
• Amperage: 15 A
• Voltage: 120/125 VAC
• Poles: 1
• Series: Radiant
• Application Sector: Commercial, Residential
• Product Line: Pass & Seymour
• Standard: UL20
• cULus Listed: Yes
• Action: (2) 3W
• Actuator: Toggle
• Connection: non-grounding, Side wire
• Contact Configuration: N-O
• Contact Rating: 15Amp, 120/277Vac
• Environmental Conditions: Flammability: UL94 V2
• Location Rating: Dry
• Operating Cycles: 30000
• Neutral Wire Required: Yes
• Construction Material: High-impact resistant thermoplastic
• Function Type: 3-Way, Single Pole
• Certifications: cULus and UL Listed
