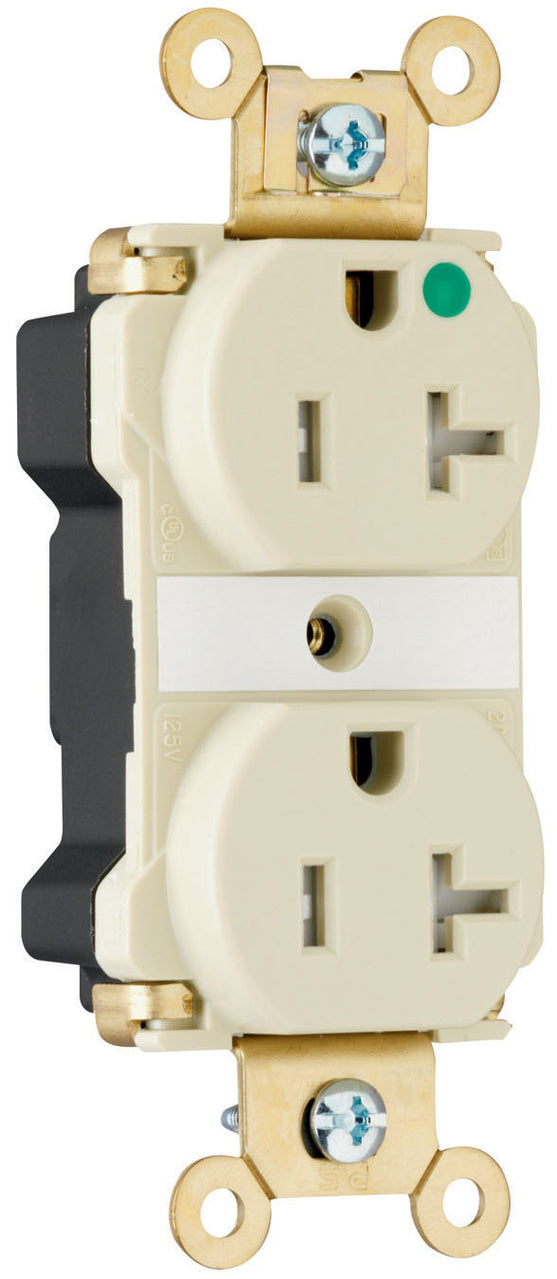

Legrand PTTR63-HGRY PlugTail 20A 125V (Duplex) PTTR63HGRY

Product Description

Legrand PTTR63-HGRY is a PlugTail 20A 125V extra heavy-duty hospital-grade tamper-resistant duplex receptacle with an integrated PlugTail connector. It provides UL-listed, keyed connector termination using #12 AWG THHN copper conductors with 6 in pre-stripped leads and an auto-ground clip. The device meets cULus UL498 and federal specifications, withstands 2000V dielectric, and operates from -40 to 60°C for commercial and healthcare electrical installations.

• 20 A, 125 V hospital-grade tamper-resistant duplex receptacle; NEMA 5-20R configuration.
• PlugTail connector with #12 AWG THHN copper conductor, 6 in pre-stripped leads; crimped and welded contacts and ultrasonically welded polycarbonate connector housing.
• Meets cULus UL498 and federal specifications; withstands 2000 V dielectric; operating temperature -40 to 60°C; brass triple-wipe contacts and auto-ground clip.

Product Highlights

Extra heavy-duty hospital-grade duplex receptacle with integrated PlugTail connector for commercial and healthcare installations.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: PTTR63-HGRY
• Country of Origin: Mexico

Technical Specifications

• Brand: Legrand
• Manufacturer Part Number: PTTR63-HGRY
• Alternate Part Number: PTTR63HGRY
• Product Line: Pass & Seymour
• Outlet Type: Hospital grade, Tamper-resistant
• Amperage: 20 A
• Input Voltage: 125 V
• NEMA Configuration: 5-20R
• Number of Receptacles: 2 (duplex)
• Wire Connection Type: PlugTail
• PlugTail Connector: #12 AWG THHN copper conductor, 6 in leads, pre-stripped; crimped and welded contacts; polycarbonate connector housing
• Wire Size: 12 - 10 AWG
• Connection Location: Back only
• Number of Poles: Single pole
• Number of Wires: 3
• Operating Temperature Range: -40 to 60°C
• Maximum Temperature Rise: 30°C at full-rated current after overload testing
• Dielectric Strength: Withstands 2000 V minimum
• Contacts: 0.036 in thick brass triple-wipe power contacts; crimped and welded
• Connector Housing: Ultrasonically welded polycarbonate
• Auto-Ground: Auto-ground clip
• Standards/Certifications: cULus UL498; Federal specifications
• cULus Listing Number: E140596
• Country of Origin: Mexico
• Mounting Strap: Brass
• Indoor/Outdoor: Indoor
• Finish: Matte
• Product Width: 1.625 in
• Product Height: 3.281 in
• Product Depth: 0.9 in
• UPC: 785007860566
