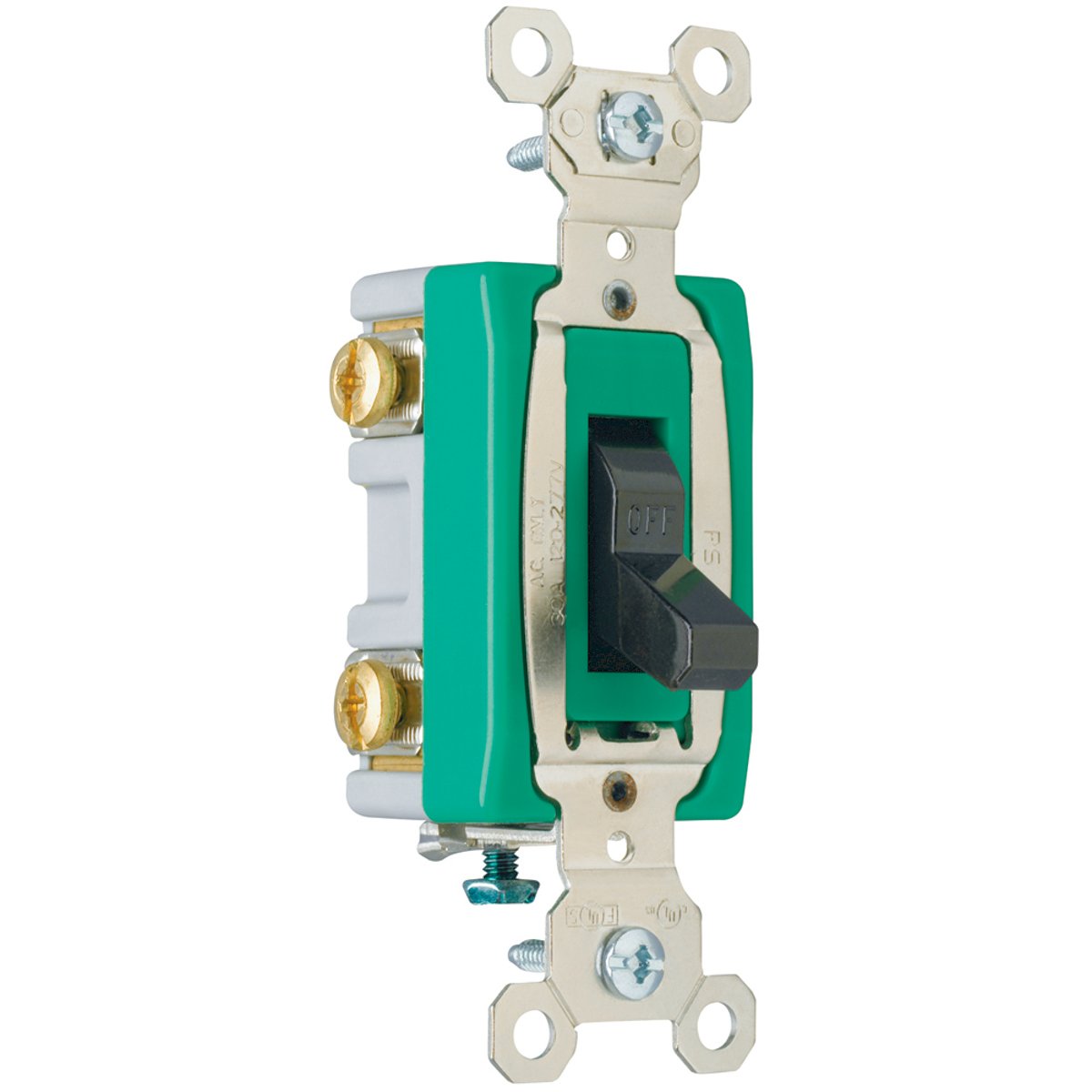

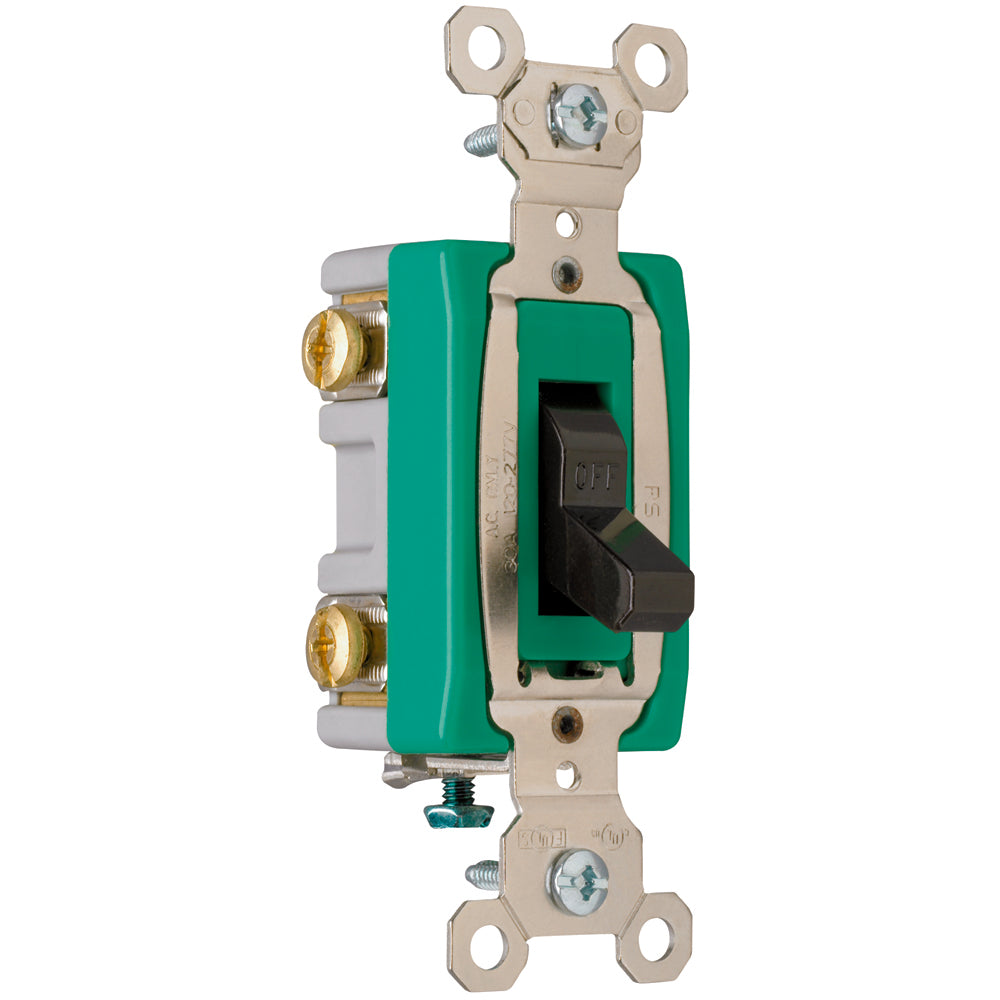

Legrand-Pass & Seymour PS30AC2HP Double Pole, Single Phase Switch, 30A, 277V

Product Description

The Legrand-Pass & Seymour PS30AC2HP is a heavy-duty double pole, single-phase switch designed for industrial applications. This switch can handle up to thirty amps at two hundred seventy-seven volts, making it suitable for various demanding environments.

• Rated for thirty amps at one hundred twenty to two hundred seventy-seven volts
• Designed for industrial applications with a NEMA enclosure
• Features bare insulation and wall mounting

Product Highlights

This switch is ideal for controlling high-powered devices in industrial settings. Its robust design ensures reliable operation and a long lifespan.

Product Information

Standard Information

• Manufacturer: Legrand-Pass & Seymour
• Catalog Number: PS30AC2HP

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 120/277 VAC
• Application: Industrial
• Contact Rating: 30 A at 120/277 VAC
• Mounting: Wall
• Insulation: Bare
• Number of Poles: 2
• Operating Cycles: 50000
• Environmental Conditions: -40 to 115 Degrees C
• Material: Thermoplastic
• Special Features: High strength toggle, heavy duty toggle bumpers, locking support
• Enclosure: NEMA 3R
• Standards/Approvals: UL 20, CSA C22.2 No. 111
