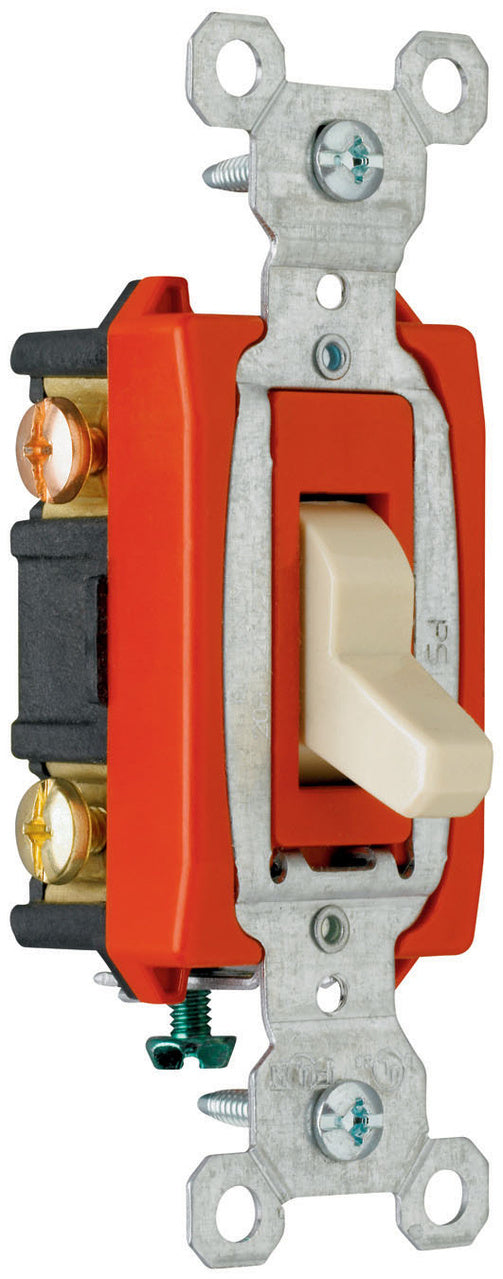

Legrand CS20AC3-I commerical 20A specification grade toggle switch

Product Description

The LEGRAND CS20AC3-I is a commercial grade 3-way switch with side-wire, operating at 20A 120/277V. These switches offer excellent value while meeting federal specification standards. External screw-pressure-plate back wiring enables fast installation and superior electrical connections. Rugged construction shrugs off hard use and abuse.

• One-piece brass alloy contact arm for reliable electrical performance.
• One-piece steel strap with integral ground is plated for corrosion resistance.
• High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.

Product Highlights

This heavy-duty toggle switch is designed for commercial and industrial applications, offering durability and reliable performance.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: CS20AC3-I
• Country of Origin: Mexico

Technical Specifications

• Color: Ivory
• Type: Switch
• Material: Thermoplastic Polycarbonate
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL Listed E140597, Standard UL20, FedSpec WS896, Flammability Rating UL94 V2, FEDSPEC
• UPC Number: 785007126532
• Product Depth US: 1.073 in
• Product Height US: 3.281 in
• Product Width US: 1.32 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Seismic Tested: No
• Wire Connection Type: Screw Terminals
• Contact Configuration: One piece brass alloy contact arm
• Contact Rating: Oversized silver alloy contacts
• Degree of Protection: 1500V Dielectric Withstand Voltage
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall, Screw
• Number of Gangs: 1
• Number of Poles: 3-Way
• Horsepower Rating: 1 HP @ 120 VAC, 2 HP @ 240 VAC
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• Series: Spec-Grade
• Commercial/Residential: Commercial
• Actuator Type: Cam Control and Spring
• Operation: 3-Way
• Terminal Type: No 14 - 10 AWG Back and Side Wired, Tri-Drive Ground
• Operating Cycles: 50000
• Insulation Type: Bare
• Enclosure Type: NEMA WD-1, WD-6
• Temperature Rating: -40 to 115 deg C
