Legrand AC1031 Enclosure Power Strip Module, Half Width

Product Description

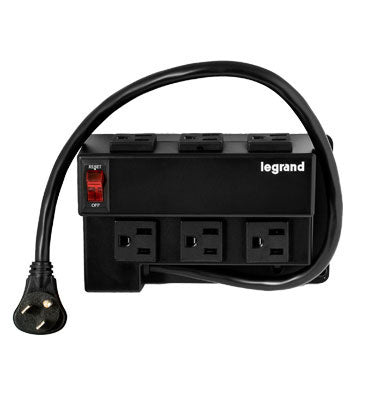

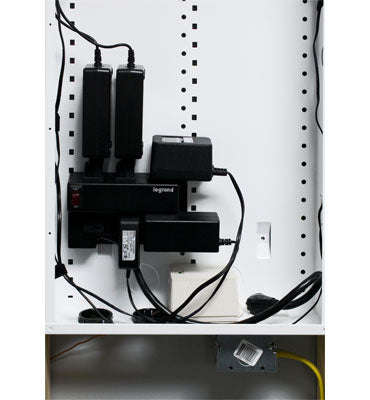

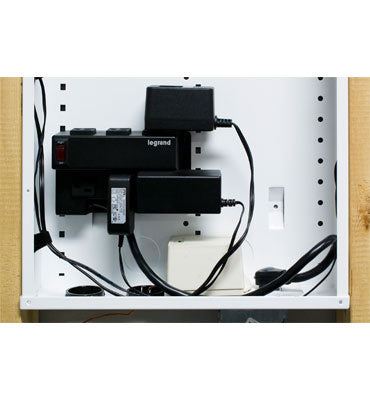

The LEGRAND AC1031 power strip includes six AC power receptacles to connect power supplies in the low voltage enclosure. It offers overcurrent protection for added safety. The half-width size allows two modules to be mounted side-by-side in the enclosure. 15A/UL rated.

• Compatible with the AC1012, AC1013, AC1014 and AC1015 Network Interface Modules only

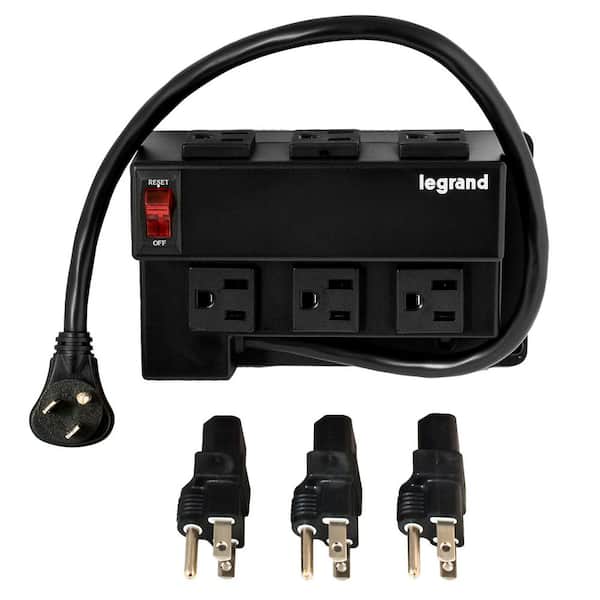

• Package includes three IEC C13 adapters and one IEC C7 (''figure-8'') adapter to vertically stack On-Q power supplies neatly in the enclosure
• Half-width size allows two modules to be mounted side-by-side in the enclosure

Product Highlights

This power strip is ideal for powering electronics inside enclosures. It features a power switch that controls all outlets.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: AC1031
• Country of Origin: China

Technical Specifications

• Product Line: On-Q
• Country Of Origin: China
• UPC Number: 804428067856
• Product Depth US: 2.5 in
• Product Height US: 3.9 in
• Product Width US: 6.4 in
• RoHS Compliant: Yes
• Number of Outlets: 6
• Surge Protection: No
• Cord Length: 6 ft
• USB Ports: No
• Power Rating: 1875 W
• Individual Switches: No
• Wall Mountable: Yes
• Overload Protection: Yes
• Build Quality: Rugged and durable aluminum housing
• Voltage: 125 Volt AC
• Amperage: 15 Ampere
• Width: 6.4"
• Depth: 2.5"
• Height: 3.9"
• Material: PVC
• Color: Black
• ADI Part Number: H4-AC1031
• Brand Name: On-Q by Legrand
• Manufacturer: Legrand Group
• Manufacturer Part Number: AC1031
• Product Model: AC1031
• Product Type: Power Strip
• Receptacles: 6 x NEMA 5-15R
• ADI Part Number Replaces: H4-364266A01
• Model Number Replaces: 364266-01
• Input Voltage: 125V AC
• Maximum Frequency: 60 Hz
• Maximum Input Current: 15 A
• Plug/Connector Type: IEC 60320 C14
• Compatibility: PW Series Power Supplies
• Environmental Certification: RoHS
• Environmentally Friendly: Yes
• Package Contents: Enclosure Power Strip Module, Half-Width Mounting Hardware 3 x IEC C13 Adapters
