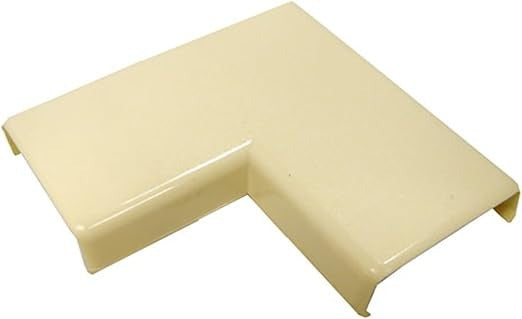

Legrand 811 90 Degree Flat Elbow (90 Deg)

Product Description

Legrand 811 is a 90 degree flat elbow for the Series 800 raceway system that provides right-angle turns on the same surface. The single-channel PVC fitting measures 2.5 inches overall length and width, fits raceway width 1 1/4 inches and raceway height 1/2 inch, and accommodates communication and power wiring. It uses snap-on mounting, includes one elbow, and is cULus/UL listed for up to 600 V.

• Compatible with Legrand Wiremold Series 800 raceways; fits raceway width 1 1/4 in and height 1/2 in
• Non-metallic PVC construction, single-channel low-profile design, overall dimensions 2.5 in x 2.5 in
• Snap-on mounting; includes one flat elbow; cULus and UL listed for up to 600 V; meets Article 388 of NEC and Section 12-2600 of CEC

Product Highlights

90 degree flat elbow for Series 800 raceways; single-channel PVC; UL and cULus listed to 600 V

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 811
• Country of Origin: United States
