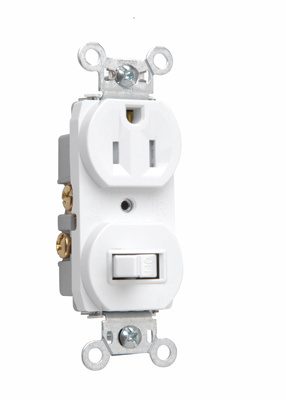

Legrand 691TRW Single Pole Switch + Receptacle 15 Amps 120 Volt

Product Description

The Legrand 691TRW is a combination switch and receptacle rated for 15 amps and 120 volts. This product allows you to install lighting without adding new wall boxes. It includes a tamper-resistant feature with a dual mechanical shutter system to prevent the insertion of foreign objects, increasing safety in homes and businesses.

• Combination switch and receptacle for easy installation
• Tamper-resistant design for safety
• Dual mechanical shutter system included

Product Highlights

This device is designed for residential and commercial use. It meets the NEC requirements and has a convenient side wire connection.

Product Information

Standard Information

• Brand: Legrand
• MPN: 691TRW

Technical Specifications

• Catalog Number: 691TRW
• Voltage Rating: 120/125 volts
• Amperage Rating: 15 amps
• Size: 1.32 inches (L) x 0.94 inches (W) x 4.06 inches (H)
• Color: White
• Depth: 1.15 inches
• Number of Poles: 1
• Operating Temperature: Maximum +60 degrees C, minimum -30 degrees C
