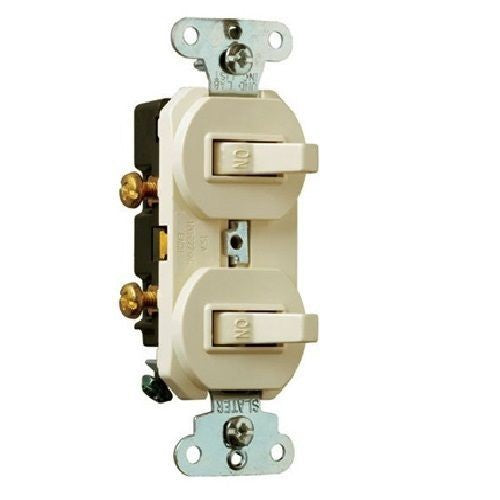

Legrand 690-LAG Grounding Combination Switches 15 A

Product Description

The LEGRAND 690-LAG is a single pole, double combination switch with ground. Rated at 15 amps and 120/277 volts, this switch is suitable for residential and hospitality applications. It features easily accessible break-off separate or common feed and side wire for #12 and #14 AWG.

• Easily accessible break-off separate or common feed.
• Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
• Side wire #12 and #14 AWG.

Product Highlights

This combination switch is ideal for applications where space is limited, offering two switches in the space of one.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 690-LAG
• Country of Origin: Mexico

Technical Specifications

• Color: Light Almond
• Type: Combination, Switch, Tamper-Resistant
• Material: Thermoplastic
• Finish: Satin
• Application Sector: Hospitality, Residential
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Combination: Combination
• Wall Plate Included: No
• Number of Switches: 2
• Switch Type: Toggle
• Standard: UL 498
• UPC Number: 785007691078
• Product Depth US: 0.94 in
• Product Height US: 4.06 in
• Product Width US: 1.32 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 15 A
• Connection Location: Side Only
• Requires Neutral Wire: Yes
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 15 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Location Rating: Dry
• Mounting Type: Wall Mount
• Number of Gangs: 1
• Number of Poles: Single Pole
• Throw Type: Single Throw
• Terminal Accommodation: #14 AWG - #12 AWG
• Voltage: 120 VAC, 277 VAC
• Manufacturer: Legrand Pass & Seymour
• Part Number: 690LAG
• Item model number: 690LAG
• Power Source: wired electric
• Amperage Capacity: 15 Amps
• Installation Method: Screw In
• Item Package Quantity: 1
• Number Of Pieces: 1
• Switch Style: Decorator
• Included Components: 690LAG
• Batteries Required?: No
• Applications: Commercial,Residential
• Connection Type: Grounding
• Number of Wires: 3 Wire
• Depth: 0.94 Inch
• Height: 4.06 Inch
• Width: 1.32 in
• Certifications: CULUS
• Standards: UL Listed
• Voltage Rating: 120/277V
• Ampere Rating: 15A
• Actuator: Toggle
• Connection: 12 And 14 AWG, Side Wired
• Mounting: Wall Mount
• Category: Business & Industrial>Electrical Equipment & Supplies>Switches>Switch Accessories
• Brand: Legrand
• Sub Brand: Pass & Seymour
