Legrand 660-G TradeMaster self-grounding toggle switch 1/2 HP (single pole)

LEGRAND
Brand: LEGRAND
SKU: 660-G
Availability: In Stock

Ships same day if ordered by 12 pm
$17.47
$17.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

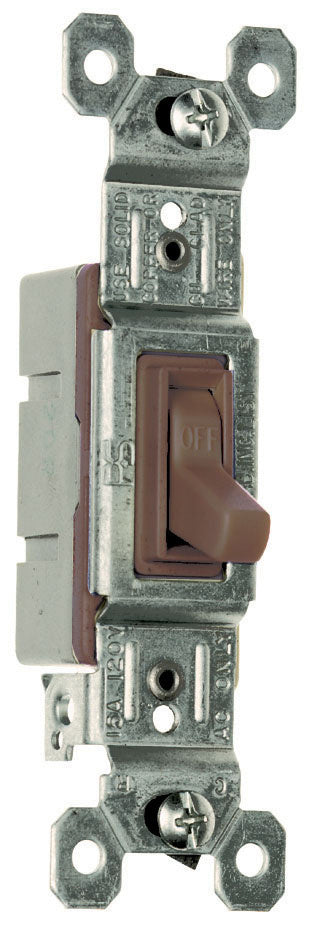

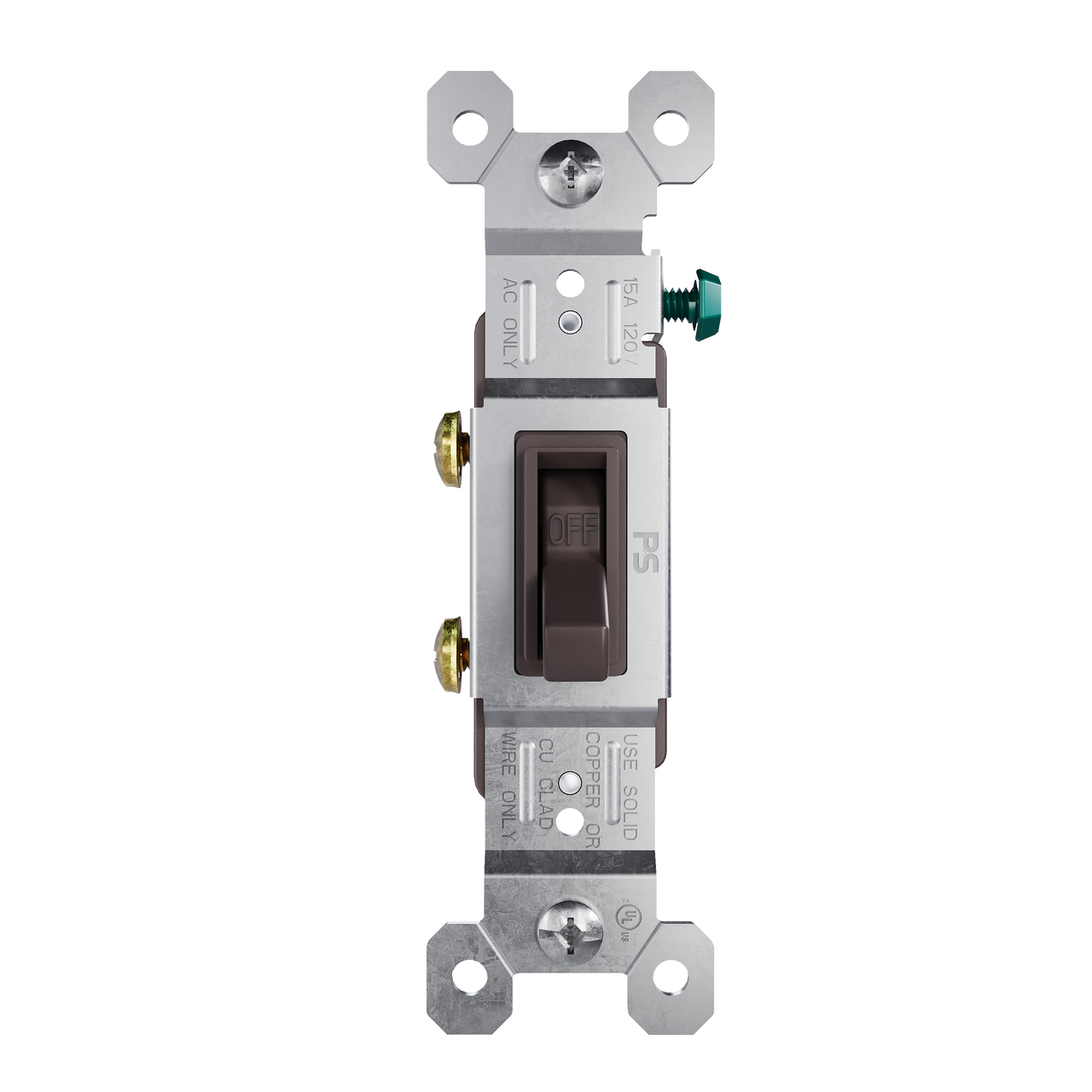

Legrand 660-G is a self-grounding single-pole TradeMaster toggle switch rated 15 A at 120 VAC with a 1/2 HP motor rating. The device features thermoplastic construction and accepts back and side wire termination as well as push-in and screw connections. It is designed for indoor wall-box mounting and is listed to UL 498/cULus for use with LED, fluorescent, halogen, incandescent, xenon and CFL loads.

  • Self-grounding single-pole toggle switch rated 15 A, 120 VAC, 1/2 HP
  • Back and side wire termination plus push-in and screw options; accepts #14–#10 AWG
  • Thermoplastic construction, UL 498 and cULus listed for indoor wall-box mounting

Product Highlights

Self-grounding single-pole toggle switch; 15 A/120 VAC, 1/2 HP; back/side/push-in terminations; UL/cULus listed.

Product Information

Standard Information

  • Brand: LEGRAND
  • Manufacturer Part Number: 660-G
  • Country of Origin: Vietnam
Technical Specifications
Brand
Legrand (Pass & Seymour)
Manufacturer Part Number
660-G
Model/Series
TradeMaster 660G
Type
Self-grounding toggle switch
Switch Type
Toggle
Number of Poles
1 (Single-Pole)
Voltage Rating
120 VAC
Current Rating
15 A
Horsepower Rating
1/2 HP
Actuator Type
Toggle
Material
Thermoplastic (high impact resistant injection molded)
Finish
Satin
Wire Termination
Back and side wire, push-in, screw; grounded terminal
Wire Size
#14 AWG - #10 AWG (accepts solid and stranded, copper-clad aluminum, and copper)
Mounting Type
Wall box (indoor)
Location Rating
Dry/Indoor
Compatible Load Types
LED, Fluorescent, Halogen, Incandescent, Xenon, CFL
Standards/Certifications
UL 498, cULus listed, CSA C22.2
RoHS Compliance
Yes
Throw Type
Single Throw
Number of Gangs
1
Wall Plate Included
No
Country of Origin
Vietnam
Dimensions
1.25 in (W) x 1.090 in (D) x 3.281 in (H)
Weight
0.1124 lb
