Legrand 5362-W Duplex Receptacle 20A 125V

Product Description

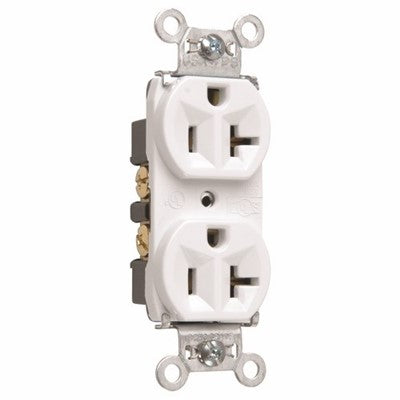

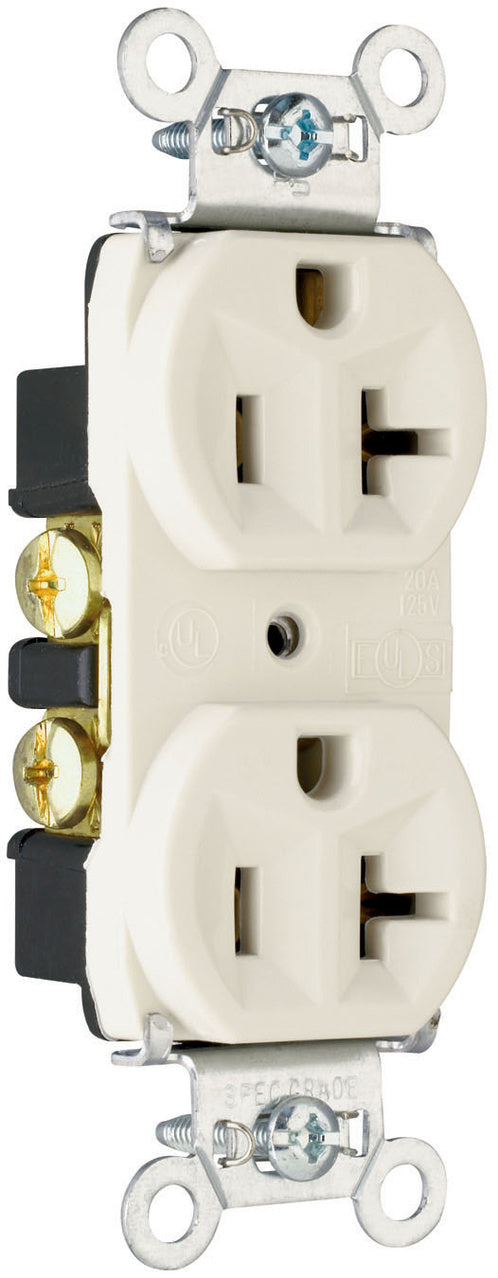

The LEGRAND 5362-W is a 20A 125V hard use spec-grade duplex receptacle with back and side wire connection. Suitable for commercial applications, this receptacle features a corrosion-resistant steel strap and an impact-resistant nylon face. It supports 14 - 10 AWG wire sizes and has a NEMA configuration code of 5-20R.

• Corrosion-resistant, plated and tabbed steel strap
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
• 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors

Product Highlights

This duplex receptacle is ideal for commercial use, offering durability and easy installation with its back and side wire connection.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: 5362-W
• Country of Origin: Mexico

Technical Specifications

• Color: White
• Finish: Matte
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Straight Blade
• Standard: UL 498, FEDSPEC
• UPC Number: 785007536256
• Product Depth US: 0.78 in
• Product Height US: 2.635 in
• Product Width US: 1.32 in
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Wire Connection Type: Internal Pressure Plates, Screw Terminals
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Operating Temperature: -40 -60 C
• Operating Temperature Max: 60 C
• Operating Temperature Min: -40 C
• Voltage: 125.0 V
• Wire Size: 14 - 10 AWG
• Material: Thermoplastic
• Grade: Specification
• NEMA Rating: NEMA 5-20R
• Terminal Type: Back/Side Wired
• Type: Duplex Grounding
• Voltage Rating: 125 VAC
