Legend Valve Leg450-863p Adapter 1/2 inches pressxpexf1960

Product Description

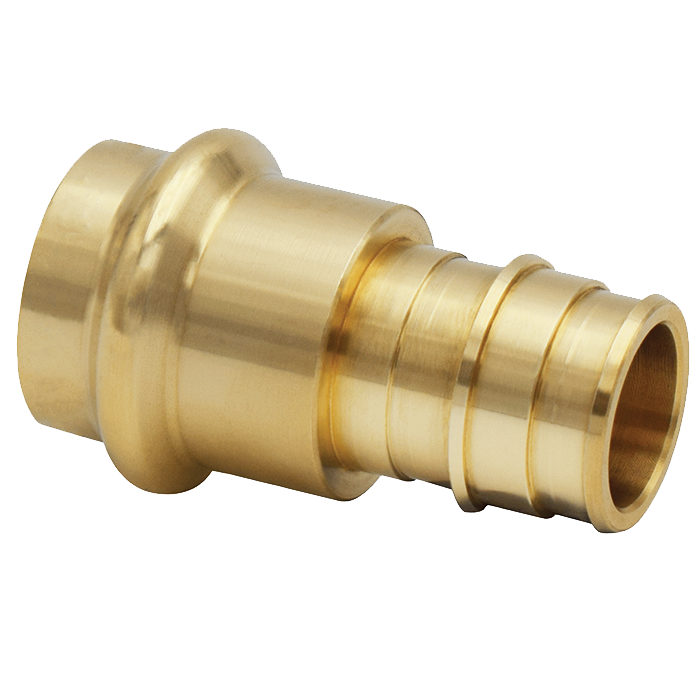

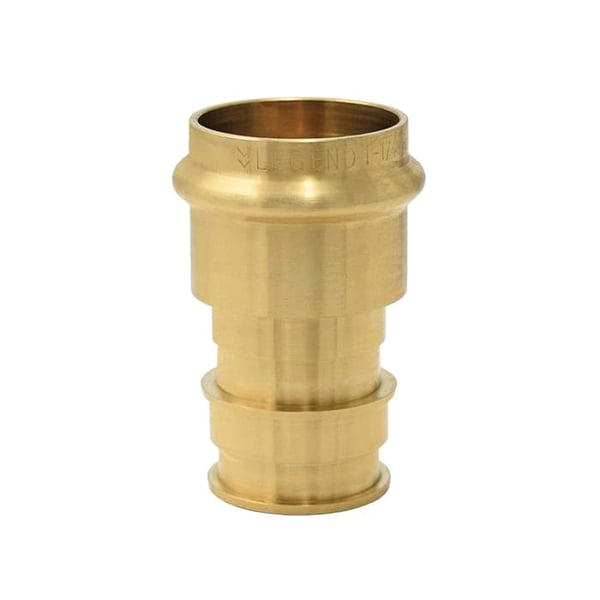

The LEGEND VALVE LEG450-863P adapter is a 1/2" no-lead press x PEX F1960 adapter, crafted from brass. It is designed for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing. Press-type end connections eliminate the need for soldering, reducing labor and material costs and eliminating the fire hazard.

• Press-type end connections eliminate the need for soldering
• Reduces labor and material costs
• Eliminates the fire hazard associated with soldering

Product Highlights

This brass adapter features press-to-connect connections and is suitable for plumbing projects requiring secure and efficient connections.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG450-863P
• Country of Origin: China

Technical Specifications

• MFR #: 450-863P
• Size: 1/2"
• Standards: 15 WSP, 200 CWP
• Connection Type: Press x PEX
• End Style: Press x F1960 PEX
• Fitting/Connector Type: Adapter
• Material: Brass
• Method of Manufacture: DZR Forged
• Nominal Size: 1/2 in
• Pressure Rating: 200 psi CWP/15 psi WSP
• Temperature Rating: 0 to 250 deg F
• Height: 1.45 in.
• Length: 3.70 in.
• Sub Type: PEX Press Fittings
• Type: PEX Fittings
• Width: 1.55 in.
• MPN: 450-863P
