Legend Valve LEG105-455NL P-450nl Inline Press Spring Check Valve

Product Description

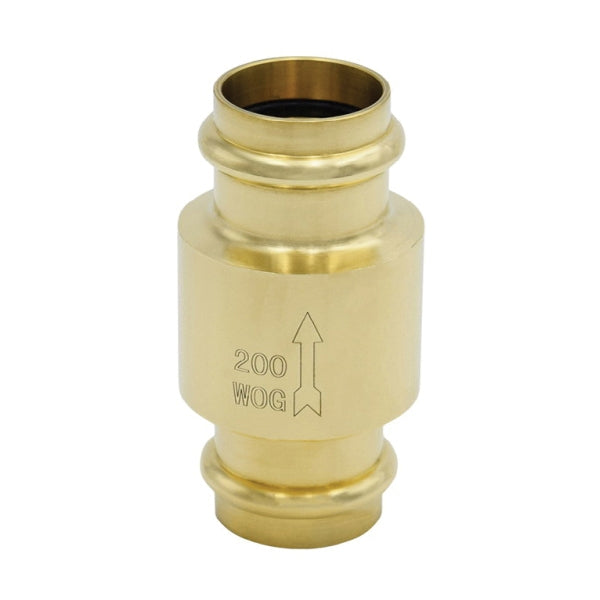

The Legend Valve LEG105-455NL P-450NL forged in-line check valve features a 1-inch nominal press end style with a brass body. It's designed for installation onto ASTM B88 types K, L, and M hard drawn copper tubing. It assures positive closure with large, integral seat and disc sealing surfaces.

• Large, integral seat and disc sealing surfaces assure positive closure
• EPDM seat for quiet operation, spring loaded stem disc
• Can be installed in both vertical and horizontal positions

Product Highlights

This lead-free forged in-line check valve has a pressure rating of 200 psi CWP and can handle media temperatures up to 180 degrees F.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG105-455NL
• Country of Origin: Import

Technical Specifications

• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 3.39 in
• Media: Water
• Nominal Size: 1 in
• Pressure Rating: 200 psi CWP
• Series: P-450NL
• Softgoods Material: EPDM
• Temperature Rating: Up to 180 deg F
• Trim Material: Stainless Steel/EPDM
• Type: Forged
