Legend Valve LEG105-454NL 3/4 no lead press inline check

Product Description

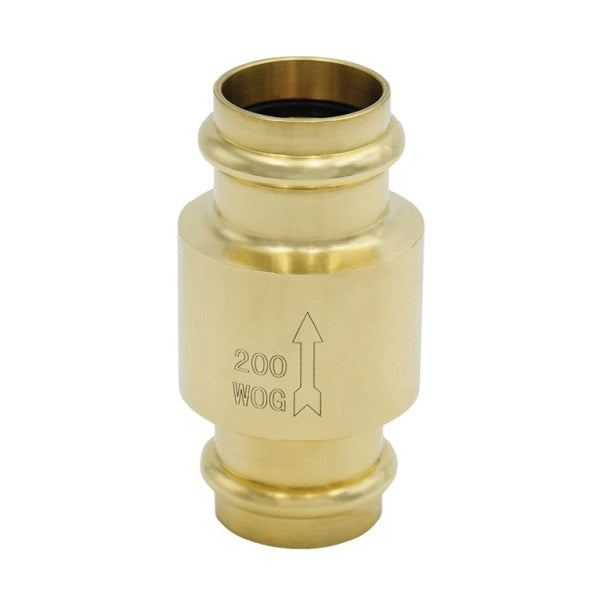

The LEGEND VALVE LEG105-454NL is a 3/4" no lead press inline check valve. It features large, integral seat and disc sealing surfaces that assure positive closure and an EPDM seat for quiet operation. It can be installed in both vertical and horizontal positions and is manufactured for installation onto ASTM B88 types K, L and M hard drawn copper tubing.

• Large, integral seat and disc sealing surfaces assure positive closure
• EPDM seat for quiet operation, spring loaded stem disc
• Can be installed in both vertical and horizontal positions

Product Highlights

The LEGEND Valve LEG105-454NL is ideal for water media applications requiring a reliable and lead-free inline check valve.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG105-454NL
• Country of Origin: Import

Technical Specifications

• Size: 3/4"
• Configuration: Press x Press
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 3.2 in
• Media: Water
• Nominal Size: 3/4 in
• Pressure Rating: 200 psi CWP
• Series: P-450NL
• Softgoods Material: EPDM
• Temperature Rating: 180 deg F
• Trim Material: Stainless Steel/EPDM
• Type: Forged
• Lead-Free/Contains Lead: Lead-Free
• Seat Material: EPDM
