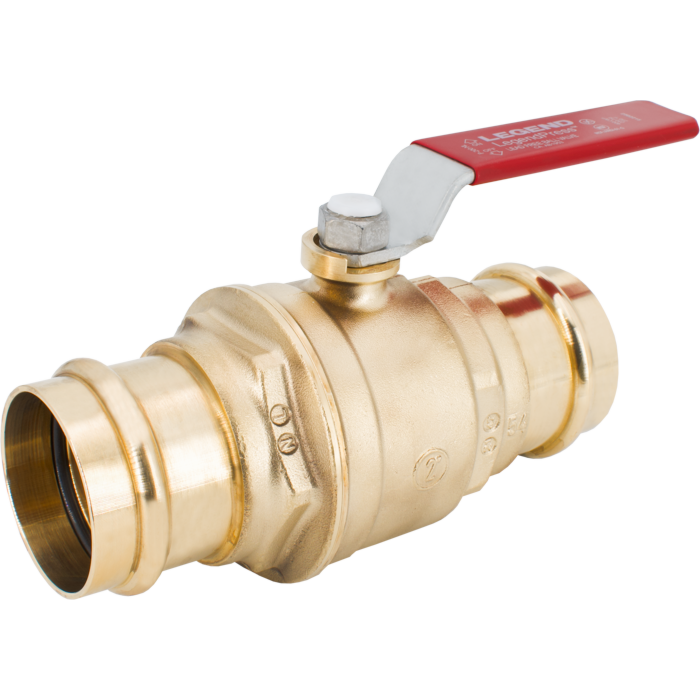

Legend Valve LEG101-004NL Ball Valve 3/4 Inch

Product Description

The LEGEND VALVE LEG101-004NL is a forged no lead brass ball valve with press connections. It features press-to-connect end connections and deeper tubing sockets with dual O-rings at each press connection. The oversized lever handle with pre-drilled tag hole is ideal for commercial applications.

• Press-to-connect end connections
• Deeper tubing sockets and dual O-rings at each press connection
• Oversized lever handle with pre-drilled tag hole is ideal for commercial applications

Product Highlights

This lead-free brass ball valve is suitable for commercial plumbing applications, offering easy press-to-connect installation.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG101-004NL
• Country of Origin: Import

Technical Specifications

• UPC: 662545082134
• Ratings: 500 CWP (1"), 1-1/4") 600 CWP (1/2", 3/4") 250 CWP (4") 300 CWP (2-1/2" - 3") 400 CWP (1-1/2" - 2") NSF / ANSI 61
• Size: 3/4"
• Configuration: Press x Press
• Color: Gold & Brass Tones
• Connection Size: 3/4 in.
• Finish: Brass
• Finish Type: Unfinished
• Height: 2.68 in.
• Length: 6.00 in.
• Material: Forged Brass
• Type: Ball Valves
• Width: 2.68 in.
• Inventory Number: LEG101004NL
• MPN: 101-004NL
• Manufacturer: Legend Valve
• Product Type: Ball Valve
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 4.51 in
• Media: Water
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: P-200NL
• Softgoods Material: TFM/PTFE/FKM Fluoroelastomer
• Temperature Rating: 230 deg F
• Top to Inlet Center: 1.9 in
• Trim Material: Brass Stem and PTFE Seat
