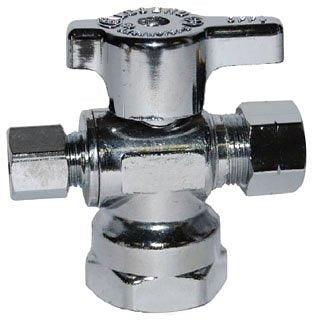

Legend Valve 86311PR-NL Three Way Stop Valve

Product Description

The LEGEND VALVE 86311PR-NL is a three-way quarter-turn stop valve designed to control water flow in residential and light commercial plumbing applications. It features a 1/2 inch FIP inlet and dual 3/8 inch compression outlets, allowing a single shutoff point to supply two downstream fixtures simultaneously. The quarter-turn ball mechanism provides fast, reliable shutoff with minimal handle travel. At 0.32 pounds, the valve is compact and easy to work in tight spaces such as under-sink cabinet runs. It is intended for installation by licensed plumbers or experienced plumbing tradespeople.

This valve is well suited for under-sink installations where two supply lines need to be fed from a single 1/2 inch FIP supply stub-out. Typical applications include dual-supply setups serving a faucet and a secondary fixture such as a refrigerator ice maker, dishwasher, or filtered water dispenser. The compression connections on the 3/8 inch outlets accept standard compression tubing without soldering, making installation straightforward in retrofit and new-construction scenarios alike.

Key Features

• Three-way configuration feeds two 3/8 inch compression lines from one 1/2 inch FIP inlet
• Quarter-turn ball operation provides quick, positive shutoff
• No-lead construction suitable for potable water systems
• Compression outlets eliminate the need for soldering at the downstream connections
• Compact and lightweight at 0.32 pounds for easy installation in confined spaces

Compatibility

Designed as an OEM-style replacement or new-installation stop valve for residential and light commercial plumbing systems with a 1/2 inch FIP supply connection and dual 3/8 inch compression outlet requirements.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the main water supply and relieve line pressure before removing any existing valve or fitting. Hand-tighten the FIP connection first, then apply a wrench for a snug fit without overtightening brass threads. Verify both compression outlet connections are leak-free under pressure before returning the system to service.

Technical Specifications

• Inlet Connection: 1/2 inch FIP
• Outlet Connections: 3/8 inch compression x 3/8 inch compression
• Operation: Quarter turn
• Configuration: Three way stop
• Weight: 0.32 pounds
• UPC: 662545085012

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 86311PR-NL
