Legend Valve 8330P-10-10 10 Port Ss Manifold /W Purge

Product Description

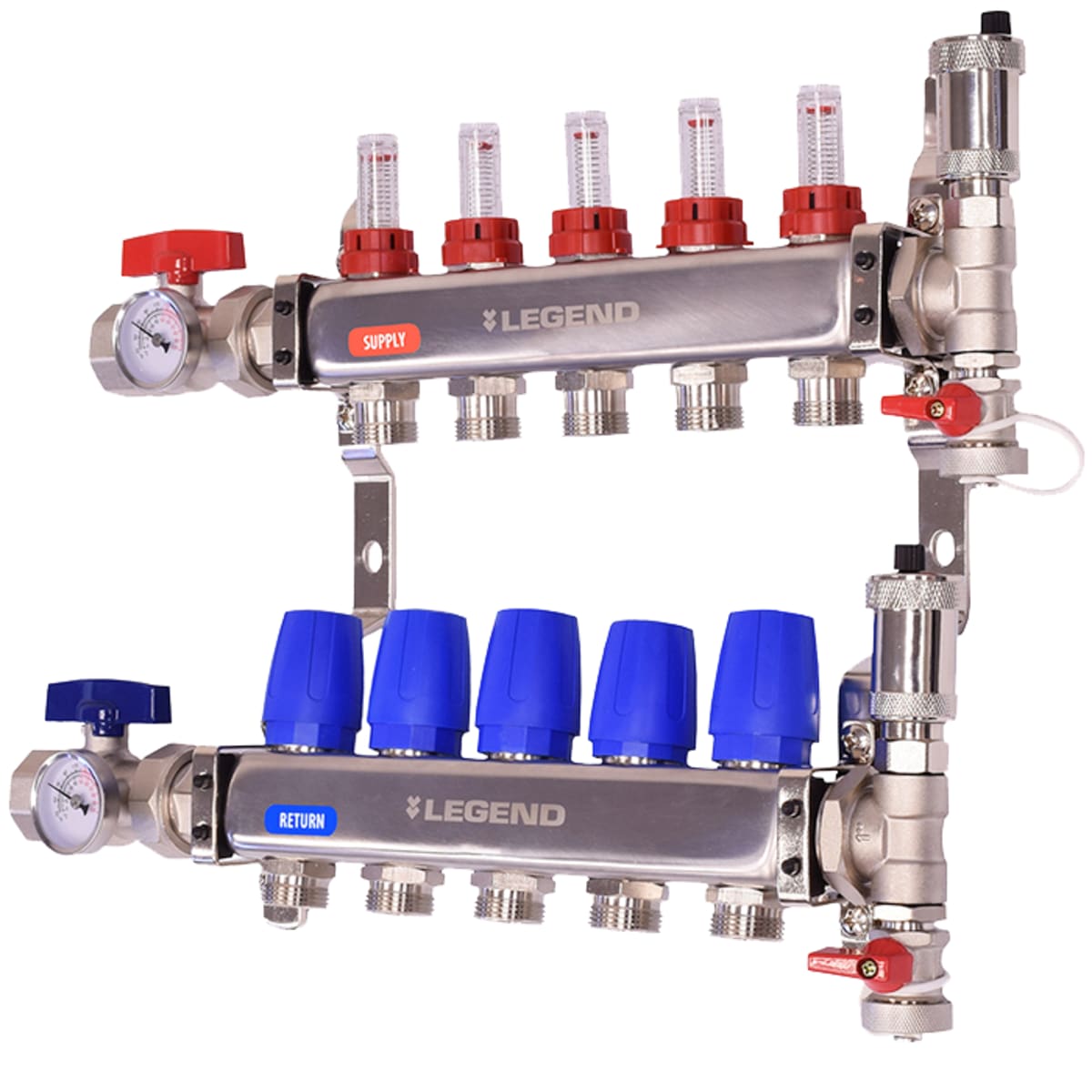

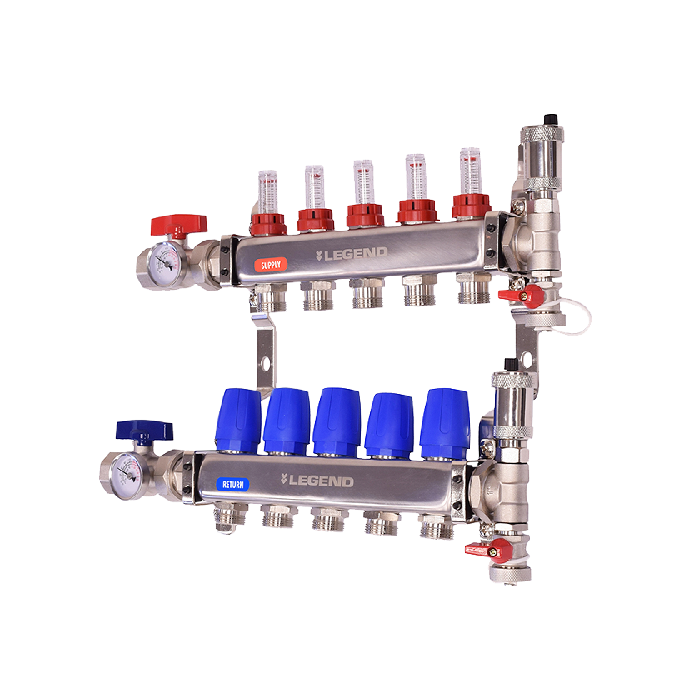

The LEGEND VALVE 8330P-10-10 Pro Manifold, from the M-8330P Series, features 10 outlets and a 1 in FNPT inlet. Constructed from stainless steel, it is designed for a maximum pressure of 125 psi and a temperature rating of 230 deg F. This manifold is suitable for hydronic heating and cooling systems.

• Premium quality and enhanced features for the radiant professional
• Versatile and easily adaptable to a variety of mounting configurations
• EPDM O-rings and seals

Product Highlights

The manifold includes built-in visual flow gauges for quick circuit performance verification and easy adjustment to the desired gpm using the red lock shield.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 8330P-10-10
• Country of Origin: China

Technical Specifications

• Inlet Size: 1 in FNPT
• Material: Stainless Steel
• Number of Outlets: 10
• Pressure Rating: 125 psi
• Series: M-8330P
• Temperature Rating: 230 deg F
• Manufacturer: LEGEND VALVE
• Type: Manifold
• Number of Ports: 10
• Body Material: STAINLESS STEEL
• End Connection: FEMALE THREADED X FEMALE THREADED
• Seal Material: EPDM
• Header Pipe Size: 1 INCH
• Model: M-8300P
