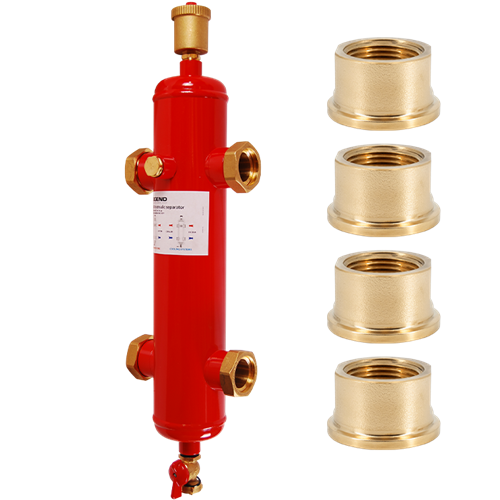

Legend Valve 800-836 HS-808 Hydro Separator Body B

Product Description

The Legend Valve 800-836 is a Hydro Separator Body designed for efficient separation of air and water in plumbing and heating systems. It features a working pressure of 145 psi, making it suitable for various applications in both residential and commercial settings.

• High-capacity air vent with built-in check valve
• Garden hose thread for easy clean-out
• Compact insulation jacket for improved thermal performance

Product Highlights

This separator body ensures better system efficiency by removing air from water lines, contributing to enhanced heating and cooling performance.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Type: Body Style B

Technical Specifications

• Model: HS-808
• Working Pressure: 145 psi
• Domestic/Import: Import
• Insulation Temperature: 230 degrees Fahrenheit without insulation, 205 degrees Fahrenheit with insulation
• Drain Valve: 1/4 turn with garden hose thread
• Gauge Port: 1/2 inch for temperature or pressure gauge
• Warranty: 5 years
