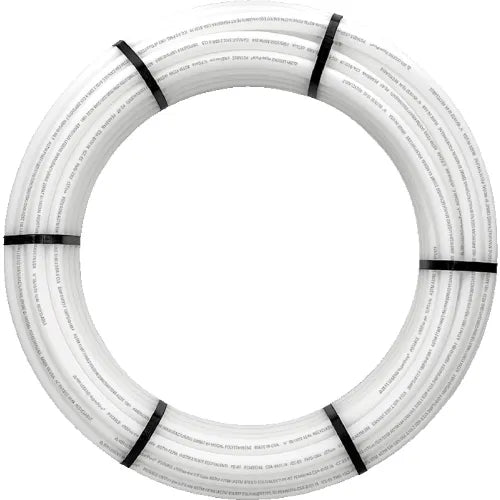

Legend Valve 500-10-500 HyperPure PE-RT Tubing 1 in x 500 ft Coil

Product Description

The LEGEND VALVE 500-10-500 HyperPure PE-RT tubing is manufactured using HyperTherm 2399 NT Bimodal PE-RT (Polyethylene Raised Temperature) by The Dow Chemical Company. This tubing has a rated pressure of 200 psi @ 73°F and 100 psi @ 180°F. It features a minimum bend radius equal to 6x the tubing outside diameter and is 100% recyclable.

• BPA Free
• Minimum bend radius equal to 6x the tubing outside diameter
• 100-year limited warranty

Product Highlights

Durable PE-RT tubing suitable for potable water systems, featuring high-temperature and pressure ratings.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 500-10-500
• Country of Origin: United States

Technical Specifications

• PSI: 200 psi
• Type: Potable Water Tubing
• Brand: Legend Valve
• Material: Polyethylene Resin
• Length: 500 ft
• Diameter: 1 in
• Package Quantity: 1
• Bend Radius: 6-3/4 in
• Temperature Range: 73°F - 180°F
• Operating Pressure: 200 psi @ 73°F and 100 psi @ 180°F
• Wall Thickness: 1/8 in
• Outside Diameter: 1-1/8 in
• Inside Dimensions: 1 in
• Outside Dimension: 1-1/8 in
• Manufacturers Part Number: 500-10-500
• Operating Temperature Range: 73°F - 180°F
• Certifications: ASTM F2769, ASTM E84, ANSI/NSF 14, CSA B137.18
• Country of Origin: United States
• Standards: ASTM F2769, ASTM E84, ANSI/NSF 14, CSA B137.18, SDR 9
• Connection Type: 500' Coil
